Playstation 3 Top Cover Replacement

Автор: iDeleted
  • Комментарии: 1
Playstation 3 Top Cover Replacement

Сложность

Easy

Шаги

5

Необходимое время

5 - 10 минут

Введение

This is the main cover to the PS3. You must take this off to access everything but the hard drive.

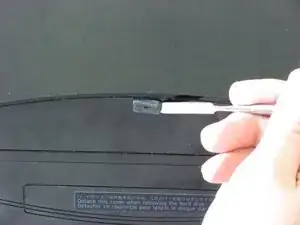

  1. rRVTEQvQSS5Ze1Rn
    rRVTEQvQSS5Ze1Rn
    qTHOsnNlmBUOWhAD

    • Remove the rubber screw cover near the hard drive cover with a spudger.

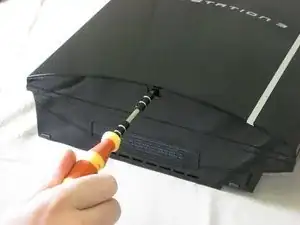

  2. jWkgTH6jmueQ2UjL

    • Remove the screw holding the top cover in place with a Torx T10 screwdriver.

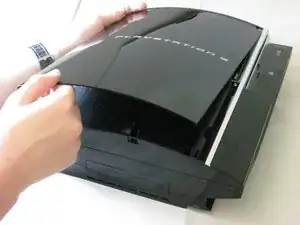

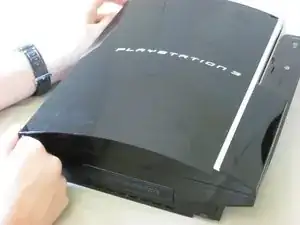

  3. LJVdBODLxElDdjJt
    LJVdBODLxElDdjJt
    fT2KSo6Koxg1O4tk

    • Slide the top cover down about half an inch.

    • Lift the cover off of the PS3.

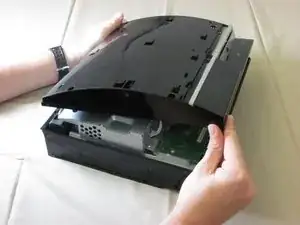

  4. MK4IGe6IynEYoUju
    MK4IGe6IynEYoUju
    MLLXH46mEHgnCndi

    • Remove the seven screws in the top cover with a Phillips #2 screwdriver.

    • One of the screws is shorter than the others. The short screw is marked in yellow.

    There is two additional small screws that need to be removed similar than the yellow one.

    Enrique Basulto -

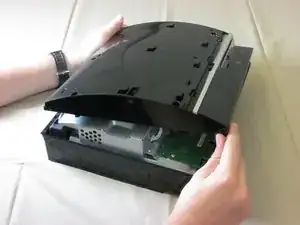

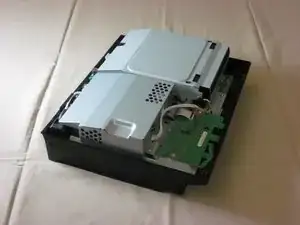

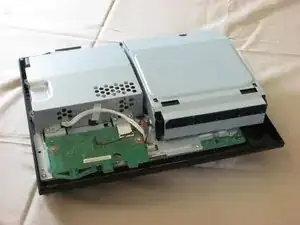

  5. NEP2c1OvPEUPganR
    NEP2c1OvPEUPganR
    nN4ebyTIWAZNZDyh
    JVcgo4sKFKXtUYVr

    • You can now lift off the top cover.

Заключение

To reassemble your device, follow these instructions in reverse order.
