PlayStation 5 Slim Fan and SSD Cover Removal

Автор: Spencer Day
  • Комментарии: 0
PlayStation 5 Slim Fan and SSD Cover Removal

Сложность

Very easy

Шаги

2

Необходимое время

Нет оценки

Введение

This guide shows how to remove the fan and SSD cover on a PlayStation 5 Slim.

  1. 5oRWwiQf1WwYCcjo

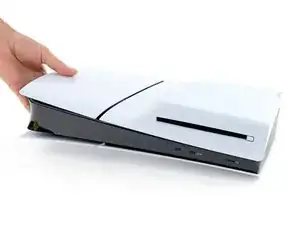

    • Lay your PlayStation on its side so the right side covers are facing up.

  2. ZWhs3IkSQMagtwte
    ZWhs3IkSQMagtwte
    GAxbNJviGfrhmUNY
    NNK3qRPBl2IYYwOf

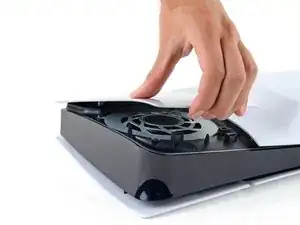

    • The cover is secured with hooks along the back edge and clips along the front edge.

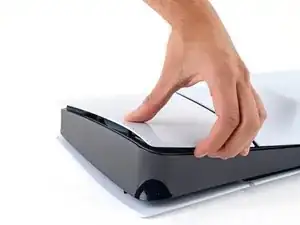

    • Firmly pull up the front edge of the smaller, upper cover to release the clips.

    • You'll hear distinct "pops" as the clips disengage.

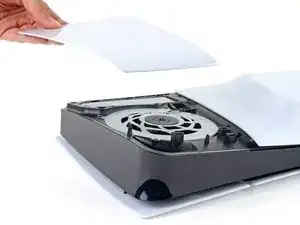

    • Remove the cover.

    • To reinstall the cover, place the hooks into their cutouts along the rear edge and firmly press the front edge of the cover into place to re‑engage the two clips.

Заключение

To reassemble your device, follow these instructions in reverse order.
