Planet Eclipse Geo3 Battery Replacement

Автор: Rett Triplett
  • Комментарии: 0
Planet Eclipse Geo3 Battery Replacement

Сложность

Very easy

Шаги

5

Необходимое время

5 минут

Введение

Planet Eclipse Geo3 Battery Replacement

Инструменты

Запчасти

  1. wfAQNPwnMAkdd6Tk
    wfAQNPwnMAkdd6Tk
    elXTBsEX6mCRT6XM

    • Remove the four screws from the grip with the 5/64" allen wrench. There are two on each side.

  2. OuUPHAOa3E56xx5P
    OuUPHAOa3E56xx5P
    j2SXkRyZbTPtxHuI

    • Pull the grip away from the frame.

  3. Xuye1CPpwkc6TtfM
    Xuye1CPpwkc6TtfM
    pnw2YNIHNGfGbVRV

    • Pull the grip through the opening.

    • The grip is connected in the middle and is one piece.

  4. Zyd4uhrkDc5acmER
    Zyd4uhrkDc5acmER
    LkSedKxE1Darxsog

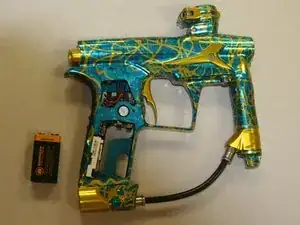

    • Push out top of battery from left side of grip.

  5. KExGHKKNkgvaodOk

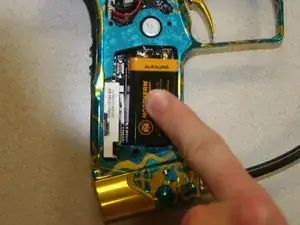

    • Push new battery into right side of grip, inserting the bottom first.

    • Be sure to match the signs of the battery and the terminals. The terminals are labeled just above the battery on the right side.

Заключение

To reassemble your device, follow the Disassembling Planet Eclipse Geo3 Grip in reverse.
