Planet Eclipse Etha Eyes Replacement

Автор: Hannah Lancaster
  • Комментарии: 0
Planet Eclipse Etha Eyes Replacement

Сложность

Moderate

Шаги

11

Необходимое время

15 - 25 минут

Введение

The Etha's Eyes determine there is a ball in the chamber before firing. This guide is useful for players who choose to upgrade their eyes, or for players who have a marker with broken eyes.

Инструменты

  1. QvLOHLJIAH5XlTEZ
    QvLOHLJIAH5XlTEZ
    DrD1SKAvATXJUgUu

    • Firmly grasp hold of the ring on the bottom of the 90 degree silver fitting on the front of the gun.

    • Pull hard, but slowly, on the macroline where it comes out of silver piece until it comes out.

    • The macroline is the black hose connecting the regulator to the tank connection.

  2. FitNL3bbisp2IU2J
    FitNL3bbisp2IU2J
    GrJ4VXevnegCV2oX

    • Remove the regulator by unscrewing it in a clockwise direction.

  3. 1JSogHlfG3SxSp2m
    1JSogHlfG3SxSp2m
    RSBS3APWrOFIJH4G

    • Use the 5/64" hex key to remove the screw shown.

    • Remove the grip panel by gently holding the bottom of the panel and lifting the panel off.

    • If you are only replacing the battery, skip the next step.

    • The screws in this guide are interchangeable with those shown in the Eyes replacement guide.

  4. MEh5fIhKYfEFBcgG

    • Flip the marker over and use the 5/64" hex key to remove the screw shown.

    • Remove the grip panel by gently holding the bottom of the panel and lifting the panel off.

  5. KWQVQTreo4ssb66O
    KWQVQTreo4ssb66O
    aFI3SbyaStbcV1N1

    • Carefully remove the 9V battery and connector.

    • Remove the 9V battery from the connector.

  6. vQVNAAusXGig3QcK
    vQVNAAusXGig3QcK
    XKaMV4ctNRBnIuvB

    • Carefully disconnect the three connectors from the circuit board.

    • Don't worry about remembering which direction the connectors go in, they will not fit in the board in the wrong direction.

  7. hwONI2XmYupEUu3p
    hwONI2XmYupEUu3p
    SPEB3lJnye4rbHJo

    • Use the 1/8" hex key to remove the two dome-headed screws by rotating them counter-clockwise.

  8. 2YCyh5BKeL5MmZMG

    • Be very careful during the step to avoid damage to the solenoid or wiring.

    • Gently separate the top and bottom of the marker.

  9. EaR16qXqTGnHEoVm
    EaR16qXqTGnHEoVm
    nVjyhjeBGNkbeD2m

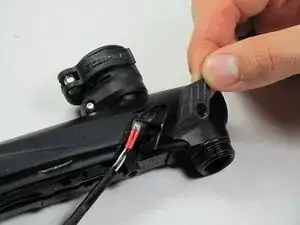

    • Use the 5/64" hex key to turn the screw counterclockwise.

    • Carefully remove the screw and place it off to the side.

    • Remove the panel and place it off to the side.

  10. WOep3gN2bXZLCHNW
    WOep3gN2bXZLCHNW
    qXU2UpWfMJZtrcUY

    • Carefully flip the marker over.

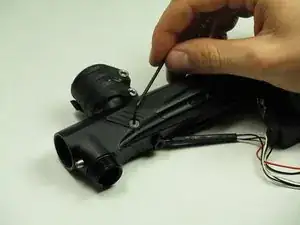

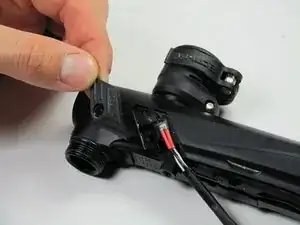

    • Use the 5/64" hex key to turn the screw counterclockwise.

    • Remove the screw and place it off to the side.

    • Carefully remove the panel and place it off to the side.

  11. K5w2Yq1rlntJrUbQ
    K5w2Yq1rlntJrUbQ
    H4gNBMYVqFVUYQUo

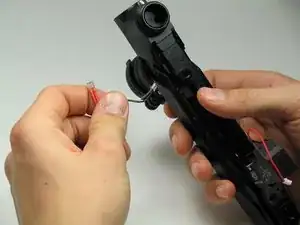

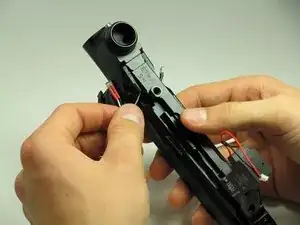

    • Grip the marker with one hand and gently pull the eyes out with your other hand.

Заключение

To reassemble your device, follow these instructions in reverse order.
