Pioneer A1 XW-SMA1-K Speaker Replacement

Автор: Luke Patton
  • Комментарии: 1
Pioneer A1 XW-SMA1-K Speaker Replacement

Сложность

Easy

Шаги

4

Необходимое время

5 минут

Введение

If you are looking to replace the speaker in your Pioneer A1 XW-SMA1-K then this is a guide instructing you how to.

  1. SEyiL6fmVJweq1sT

    • Use the spudger to remove the mesh front panel.

  2. HPeRgSwNolLqpWeD

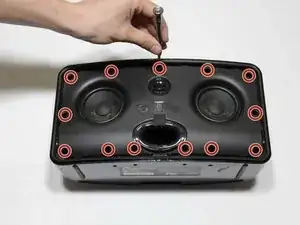

    • Use a Phillips #1 screwdriver to remove the thirteen 12 mm screws in the speaker frame.

    • Remove the four screws at the bottom of the device.

    • Remove the speaker frame by pulling vertically and flip to reveal the speakers.

  3. UMFTAOMTBWVURiCv

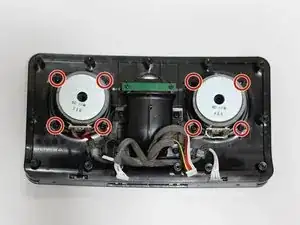

    • Use a Phillips #1 screwdriver to remove the eight 12 mm screws from the left and right speakers.

  4. 1gEuGFVINiYZM134
    1gEuGFVINiYZM134
    ILXAQcsRfYDDGJLb

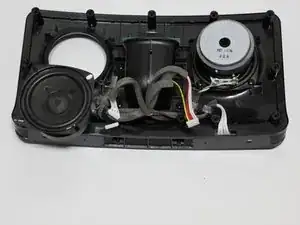

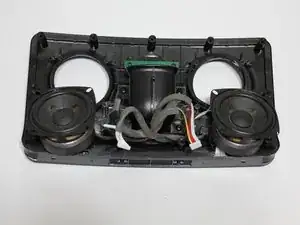

    • Remove the left and right speakers from the speaker frame by pulling gently up and detaching the wires.

Заключение

To reassemble your device, follow these instructions in reverse order.
