Photive Artisan Portable Bluetooth Speaker Replacement

Автор: David Lennon
  • Комментарии: 1
Photive Artisan Portable Bluetooth Speaker Replacement

Сложность

Easy

Шаги

8

Необходимое время

15 минут

Введение

Use this guide to replace a broken speaker.

Инструменты

  1. DqROGVTR3ndYnYQW

    • Before continuing, be sure your device is powered off.

    • Remove two 9mm Phillips #0 head screws from the bottom side of the speaker.

  2. Ar6k2scJSHm43Nie

    • Peel back the rubber feet from either side of the base.

  3. ATLgVcgFJoV5Pejy

    • Remove four 9mm Phillips #0 head screws from the bottom of the speaker.

  4. SRZ6UCHTDa12TCDB

    • Separate the base of the speaker from the upper housing.

  5. PdZOMssvgUvJN3eu

    • Remove four 9mm Phillips #0 head screws from the inside of the speaker case.

  6. UVYVvxpxUVrkIFKT
    UVYVvxpxUVrkIFKT
    O2KJcUa2GMICwngL
    xBUNPPyYuwigm5jH

    • Remove all cable connectors from the speaker motherboard.

    Emerson speaker Battery pack size

    Dion -

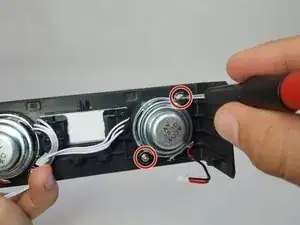

  7. Th2TqKAgKwWOYv4M

    • Remove two 7mm Phillips #0 head screws from the front panel.

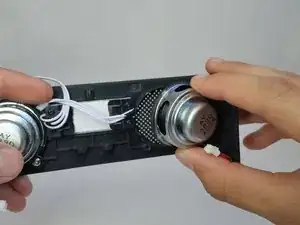

  8. q31t5hmyOoHlZmlK

    • Lift the speaker from its housing.

Заключение

To reassemble your device, follow these instructions in reverse order.
