Philips Satinelle On/Off Switch Replacement

Автор: Riannon Varney
  • Комментарии: 2
Philips Satinelle On/Off Switch Replacement

Сложность

Moderate

Шаги

6

Необходимое время

30 минут

Введение

If the epilator is plugged in and the on/ off button does not seem to be working, the switch may be in the wrong position. This guide will help you replace the switch and make sure it is in its right position for the epilator to turn on.

Инструменты

  1. kCO2EZvbZ3qfIMoW
    kCO2EZvbZ3qfIMoW
    IngKALHKLhupZwhY
    UvDbiElNplWrYTmE

    • Remove the head by pushing it to the right.

  2. LRpvMKP4BQlcILJC
    LRpvMKP4BQlcILJC
    HT6aiQCTbcGojuP6

    • Use a metal spudger to pry open the casing.

    • Caution: The epilator's internal components could be damaged if you shove the spudger in too far.

  3. SbwLJU1yakSs2hJt

    • Pull the plastic casing apart with your hands.

    • The plastic tab connecting the cover is likely going to break when you pull the device apart. This will not affect the operation of the epilator.

    That means once the epilator is opened, the same cover cannot be used to enclose the machine??

    Renu Singh -

  4. 5j43ikTyA4v1PT6M

    • Remove the green board and the black socket.

  5. 6FlEGMR6F3IfpC5m

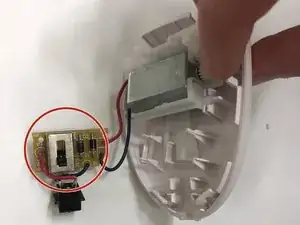

    • Slide the switch down toward the socket.

  6. OBOwxc6duC6KQJ6Q
    OBOwxc6duC6KQJ6Q
    G5CLn5HrycTIQvlC
    NPAgmhZQGq4M1fhP

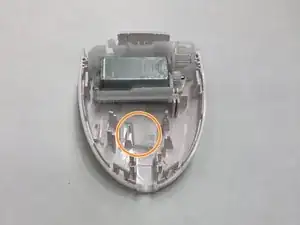

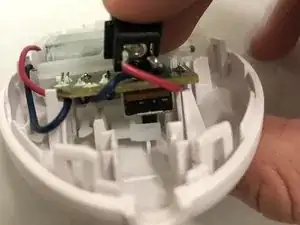

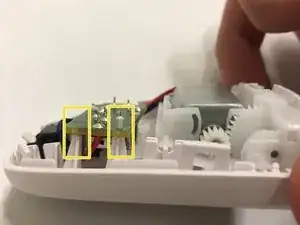

    • Put the components back into the frame

    • If the switch won't line up with the plastic square, make sure the large switch on the front of the operator is in the "off" position.

Заключение

To reassemble your device, follow these instructions in reverse order.
