Philips Satinelle Motor Replacement

Автор: Madeline Casalino
  • Комментарии: 3
Philips Satinelle Motor Replacement

Сложность

Moderate

Шаги

5

Необходимое время

30 минут

Введение

If the epilator is plugged in and receiving power, but still will not turn on, one of the internal components may be broken. This guide will help you remove a broken motor of your Philips Satinelle. It should take no more than 30 minutes to complete this guide.

Инструменты

Запчасти

  1. kCO2EZvbZ3qfIMoW
    kCO2EZvbZ3qfIMoW
    IngKALHKLhupZwhY
    UvDbiElNplWrYTmE

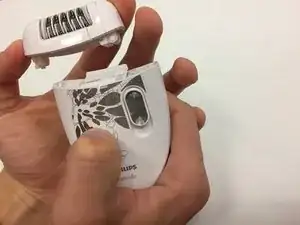

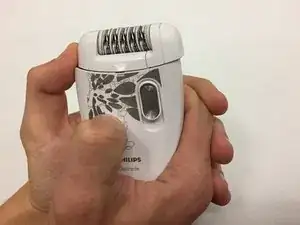

    • Remove the head by pushing it to the right.

  2. LRpvMKP4BQlcILJC
    LRpvMKP4BQlcILJC
    HT6aiQCTbcGojuP6

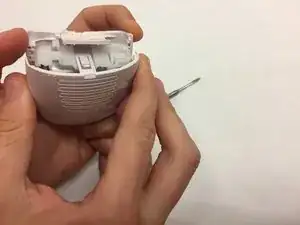

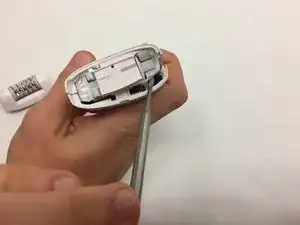

    • Use a metal spudger to pry open the casing.

    • Caution: The epilator's internal components could be damaged if you shove the spudger in too far.

  3. SbwLJU1yakSs2hJt

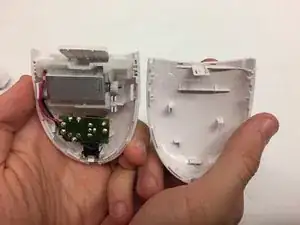

    • Pull the plastic casing apart with your hands.

    • The plastic tab connecting the cover is likely going to break when you pull the device apart. This will not affect the operation of the epilator.

    That means once the epilator is opened, the same cover cannot be used to enclose the machine??

    Renu Singh -

  4. 5FNM4qTmoc64pTys
    5FNM4qTmoc64pTys
    TixEJbydvmZfmyPv

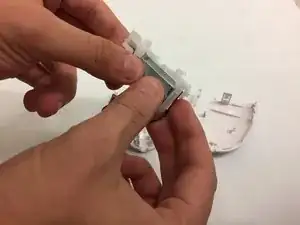

    • Remove the components.

  5. 1YBEdVaSJyJUZxkK
    1YBEdVaSJyJUZxkK
    e2wVTAvadlAO5CYB
    YIpU1ktFgYyNPSto

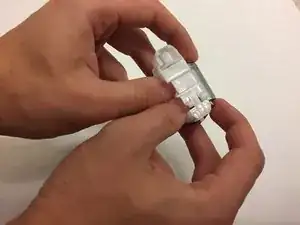

    • Hold the motor with the gears face away from you.

    • Gently push the motor out with your thumbs.

Заключение

To reassemble your device, follow these instructions in reverse order.
