Philips Respironics System One REMstar Blower Unit Replacement

Автор: Travis Lott
  • Комментарии: 1
Philips Respironics System One REMstar Blower Unit Replacement

Сложность

Moderate

Шаги

5

Необходимое время

10 минут

Введение

  1. GAocdQF4OogacdhZ

    • Turn the device upside down so that the rubber feet are facing you.

    • Use the TR15 screw head to remove the two 46.5mm length crews located on the back.

    • Gently remove the casing so that the wires are not damaged.

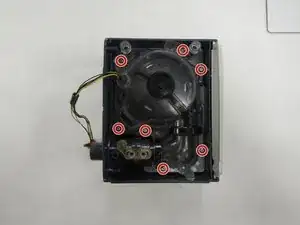

  2. ubLFjbMIdARLWhKp

    • Using a Torx TR10 screwdriver, remove the seven 13.5 mm screws that are securing the inner casing.

    • Remove the inner casing.

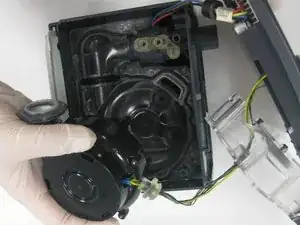

  3. LVKFS5TefsdN22cF

    • Remove the motor from the bottom half of the inner casing and set it to the side.

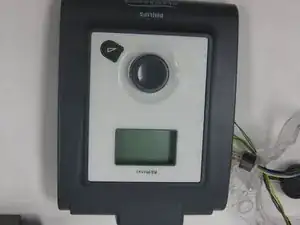

  4. YYJtUts4bFV6QCgo
    YYJtUts4bFV6QCgo

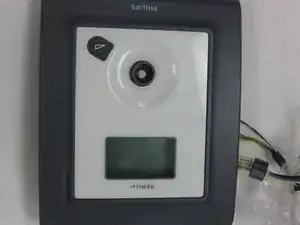

    EfQXaaVF2YZUqxLr

    • Remove the circular piece by popping it off to separate the circuit board from the top cover.

    • No tools should be necessary to complete this action.

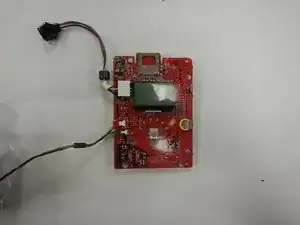

  5. UCmGDxKBxT21vde5
    UCmGDxKBxT21vde5

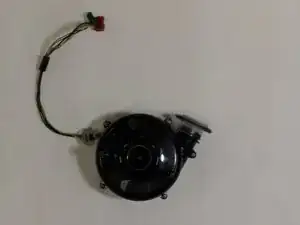

    DCAW6TMDPh2LPvlR

    • Disconnect the green and red wire connectors from their white connectors to disconnect the blower motor.

Заключение

To reassemble your device, follow these instructions in reverse order.

Автор

Travis Lott

Участник c: 16/09/20

175 Репутация

Один комментарий

These steps may be out of sequential order. Step 4 should probably be Step 1 and perhaps some are even missing.
