Petlibro Air Automatic Pet Feeder Motor Replacement

Автор: Joseph Ambriz
  • Комментарии: 1
Petlibro Air Automatic Pet Feeder Motor Replacement

Сложность

Moderate

Шаги

6

Необходимое время

5 минут

Введение

Has your Pet Libro Air Automatic Pet Feeder (model, PLAF008) stopped dispensing food? Let's start by cleaning the rotor it's a very common problem for food to get stuck in them. Without a clean rotor, the pet feeder won’t be able to dispense properly. It is also convenient to have a safe place to store screws while working to not lose them as they are crucial for reassembly.

  1. HEWePQCBwwWYKONM

    • Make sure your device is off, and no other power supply is connected.

    • Flip your device upside down.

  2. 4xBWpABVFrJTtphF

    • Push in the black tab securing the battery compartment panel.

    • Lift up the panel.

  3. oNJrjUllSFVCJTPK

    • Remove the discharged batteries and replace them with new 3 X D alkaline batteries.

  4. LVLvvVXErrZNITO1

    • Remove the four screws in the battery compartment.

    • Remove the batteries first

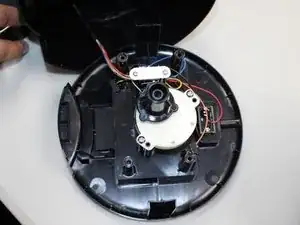

  5. ELLFVI5jCh5S3jTc

    • After unscrewing, you’ll see the machinery inside your device.

  6. FBEZ2KK4XA5jYDtA

    • Disconnect the attached cables.

    • Remove the motor.

Заключение

To reassemble your device, follow these instructions in reverse order.
