Dexter 900W Corded Hammer Drill - 900ID2.5 Rotor Replacement

Автор: Céline Chemineau
  • Комментарии: 1
Dexter 900W Corded Hammer Drill - 900ID2.5 Rotor Replacement

Сложность

Easy

Шаги

13

Необходимое время

4 минут

Введение

This guide will take you through the steps of replacing the rotor on your device

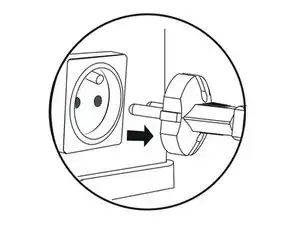

  1. W54WP4LmYdBFK5U3

    • Before you begin, remember to disconnect the mains plug.

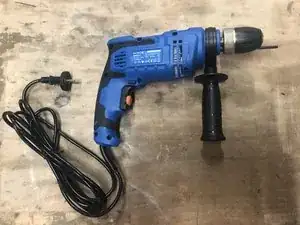

  2. 1bH241NkHDKUKNeM
    1bH241NkHDKUKNeM
    xH3FuMsrbsdXYqkZ

    • Remove the handle from the machine.

  3. vGiyOq5buFp5K3Ny
    vGiyOq5buFp5K3Ny
    l2cEDUE31T2TqGpQ

    • Using a screwdriver or screwdriver, unscrew and open the device.

  4. nKlR1DcBrR2hGlAU

    • Unscrew the four screws.

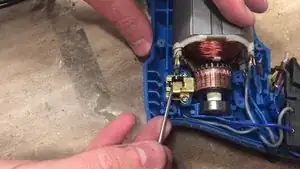

  5. Using a screwdriver, lift the spring of the two brushes.

    • Using a screwdriver, lift the spring of the two brushes.

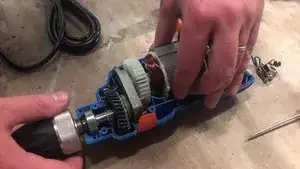

  6. Lift the rotor and the stator and disassemble them.

    • Lift the rotor and the stator and disassemble them.

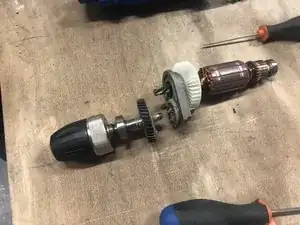

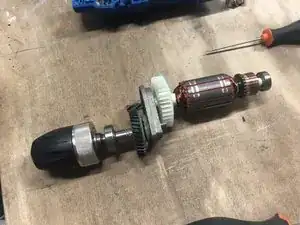

  7. mqqudGixOXCSIEyL
    mqqudGixOXCSIEyL
    dVYTCnXDemyKbEDL

    • Disassemble the two parts.

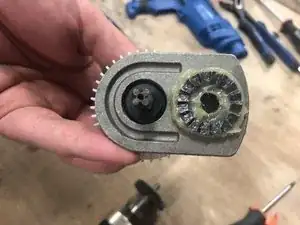

  8. NbOmnZqv2FsnTC2O

    • Before reassembling the new part, be sure to re-grease.

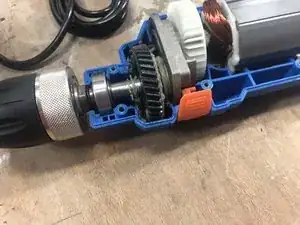

  9. vdBIGkIcrGyGEkUj
    vdBIGkIcrGyGEkUj
    TiOWUdwYpOYmFW4p

    • Reassemble the two parts and replace them in their place.

  10. Reposition the brush springs.

    • Reposition the brush springs.

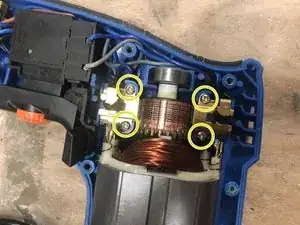

  11. BPKoVi6cGwA4BiNt

    • Then retighten the four screws.

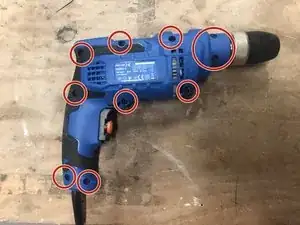

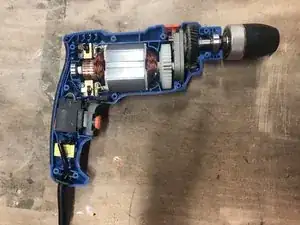

  12. ktfVRSFdCGpGWYID
    ktfVRSFdCGpGWYID
    WuVL5vj1UHXIuOsJ

    • Before closing, check that no cable is blocked and that each part is in its place.

    • Tighten the screws to close the device.

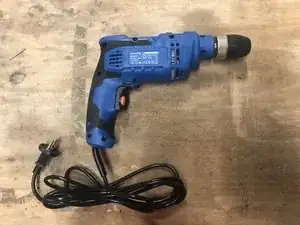

  13. lGNEQgtlxqG6ROVg
    lGNEQgtlxqG6ROVg
    X43DiSaMB65obCVW

    • Finally replace the handle.

Заключение

By the end of the guide you will have successfully replaced the rotor

To reassemble perform the steps in reverse
