Palm Zire 21 Battery Replacement

Автор: Jeremy Craft
  • Комментарии: 0
Palm Zire 21 Battery Replacement

Сложность

Moderate

Шаги

5

Необходимое время

Нет оценки

Введение

Use this guide to replace the battery on a Palm Zire 21.

Инструменты

  1. fHg4hwmwehKeMe5Z
    fHg4hwmwehKeMe5Z
    MrBGUqifcanVGqU2

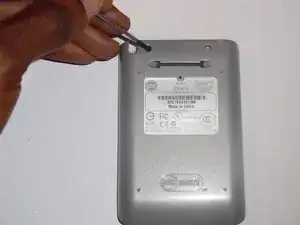

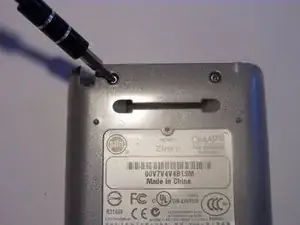

    • Remove the two 0.8mm screws located on the back of the device.

  2. VCgCwfRuXuoRfKLI
    VCgCwfRuXuoRfKLI
    KMD3ALRqtBL6Ws4A
    WcHBGXbZErSBYyV3

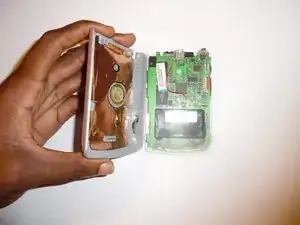

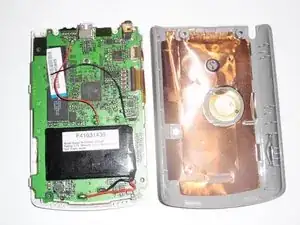

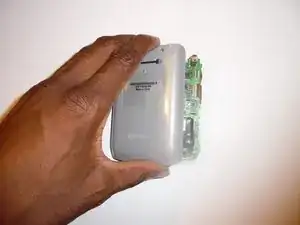

    • Remove the back cover from the device exposing the battery.

  3. 2Ps1fMWrmkSkKy3d

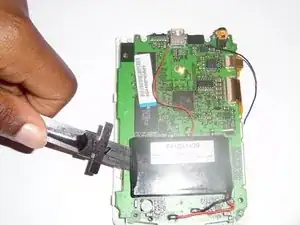

    • Using a plastic opening tool, small flathead screwdriver, or small knife blade pry the battery away from the motherboard. Be careful not to pry to fast, or you could rip the wires off during this stage.

  4. 2rmldMELVyZQWtqg

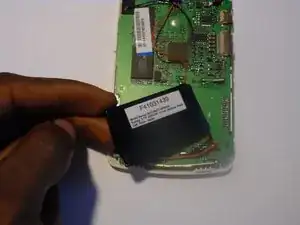

    • Carefully remove the battery from the motherboard.

  5. TQxlHO2CSGsinSOb

    • Unwrap the old battery from electrical tape and replace with new battery.

Заключение

To reassemble your device, follow these instructions in reverse order.
