Palm Pilot Professional 3com Keypad Replacement

Автор: Kevin Santos
  • Комментарии: 0
Palm Pilot Professional 3com Keypad Replacement

Сложность

Easy

Шаги

4

Необходимое время

Нет оценки

Введение

How to install a new keypad if your buttons malfunction or are worn.

Инструменты

  1. cElAwYYt5VGORoUO

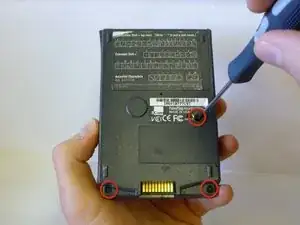

    • Unscrew the three screws on the back of the Palm Pilot.

  2. 1ZLwhJLia4uUAlIW
    1ZLwhJLia4uUAlIW
    FpqqIxyYZWT4VVfk

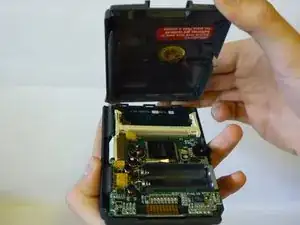

    • Pull the back cover from the bottom of the device and separate the interlocking tabs on the top to remove the back cover.

  3. y1RHjlPFLcYiAq3M

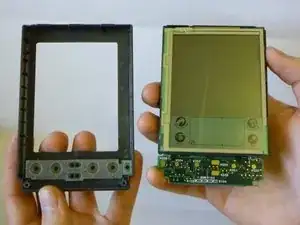

    • The front plastic cover is now free to be removed from the rest of the device.

  4. moW6TIsOZIBckxGT

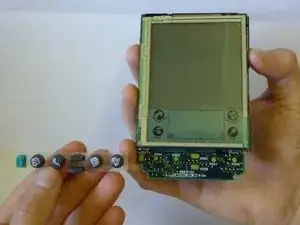

    • The keypad is now free to be removed from the rest of the device.

Заключение

To reassemble your device, follow these instructions in reverse order.
