One by Wacom Medium Disassembly

Автор: 00004707
  • Комментарии: 1
One by Wacom Medium Disassembly

Сложность

Easy

Шаги

4

Необходимое время

5 - 15 минут

Введение

This guide will show you how to disassemble One by Wacom Medium.

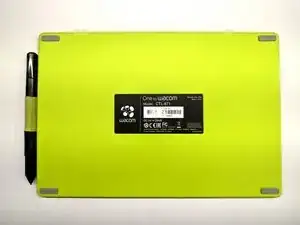

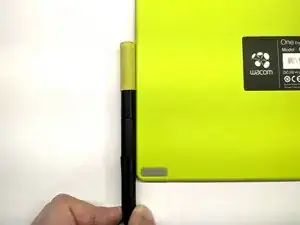

  1. UcLvsIOwQYYeaqNY
    UcLvsIOwQYYeaqNY
    qAHiFxShCIgpytTR

    • Remove the pen from the pen holder

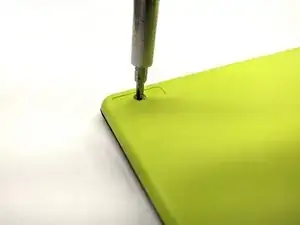

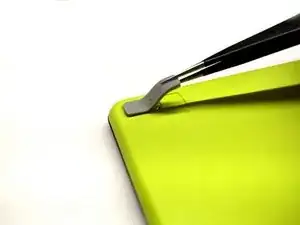

  2. pkixthXkwKVWkFfx
    pkixthXkwKVWkFfx
    dJk1H2R1r2SiRDmA

    • Remove four rubber feet to reveal four Phillips #1 screws

    • Remove four Phillips #1 screws

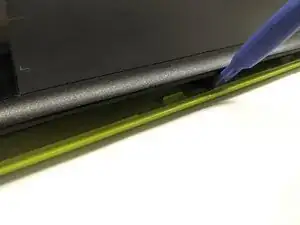

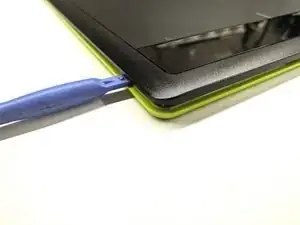

  3. y1QQvoODTSB5hvgL
    y1QQvoODTSB5hvgL
    tiPlxCU5OUEWa5JD

    • Use plastic pry tool to open the casing

    • To make this process easier, start prying from corners

    • Continue prying on every side till two casing sides are separated

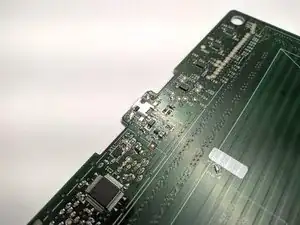

  4. H4sMKKfjahdIgnXp
    H4sMKKfjahdIgnXp
    xyFjvyYF4ZLIf4FB
    EJplLYjM1wNeGdIg

    • Remove the mainboard from the casing

    • If the USB port has to be replaced, be sure to remove the shielding from the back of the mainboard to avoid damaging it by high temperature

Заключение

To reassemble your device, follow these instructions in reverse order.
