Omaker M4 Battery Replacement

Автор: Carlos Pernia
  • Комментарии: 1
Omaker M4 Battery Replacement

Сложность

Easy

Шаги

6

Необходимое время

40 секунд - 1 минута

Введение

When using the metal spudger to remove the battery, be sure to carefully pry along the entire side the battery so that the battery will come off without bending.

  1. hiZccfgrEhqdwQsy

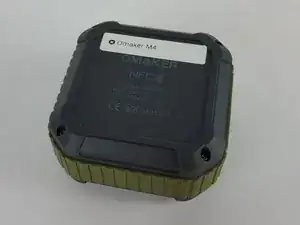

    • Flip the device over so the front of the speaker is facing down. Make sure to place the speaker on a flat surface

  2. IUAlASlbahCRoOYu
    IUAlASlbahCRoOYu
    AN3RvTflmTNfckVY

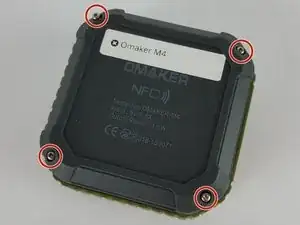

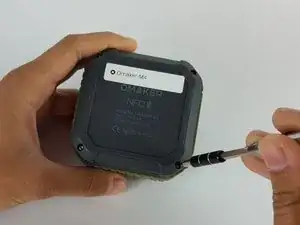

    • Use a T6 Torx screwdriver to remove the four 9mm screws from the back of the device.

  3. YglOmUGVXVbUO3Cr
    YglOmUGVXVbUO3Cr
    KgqAAAOPswRqQpvb

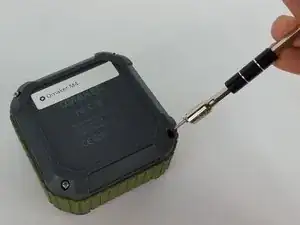

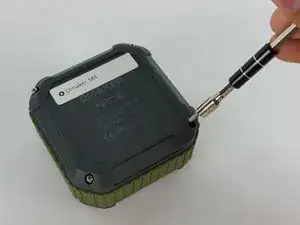

    • Use a magnet to remove the screws after unscrewing them and place them aside.

  4. eBx2BVm1GcGCvOb6

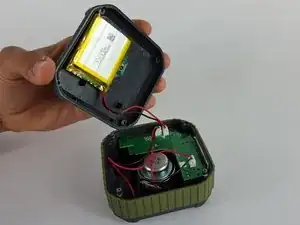

    • Carefully remove the back cover without breaking the battery wire.

  5. HOMC1Bpqd3dEtk6X
    HOMC1Bpqd3dEtk6X
    RRMjmikwIFaKJPwa

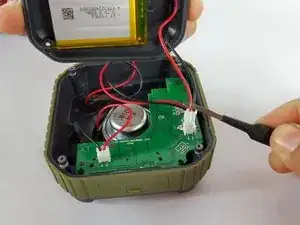

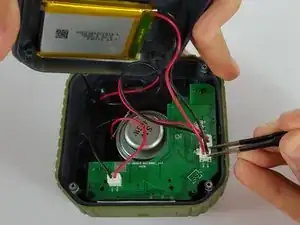

    • Remove the end of the battery connection from the motherboard by holding the end of the wire and carefully pulling it out of the socket using tweezers.

    • The battery is still attached to the back cover.

  6. eW6ndhJdxPLVHrRX
    eW6ndhJdxPLVHrRX
    ZN5A1OpgtJL2yv1K
    l5kSBAxkUeBD2OuC

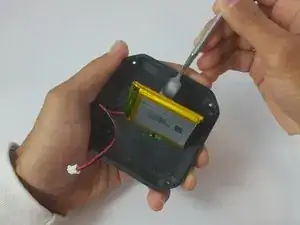

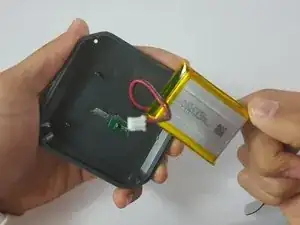

    • Use the metal spudger to carefully pry along the entire side of the battery from its connecting tape on the back cover.

Заключение

To reassemble your device, follow these instructions in reverse order.
