This guide will teach you how to disassemble the control box of the Oculus Rift DK1.
Инструменты
-
-

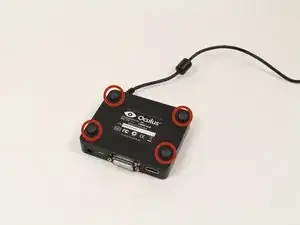

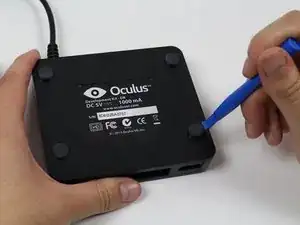

Use a plastic opening tool to carefully pry off the four rubber feet from the control box.
-

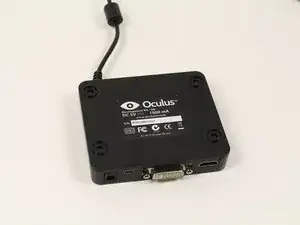

You have now revealed the four 9 mm Phillips #1 screws underneath the rubber feet.
-
-
-

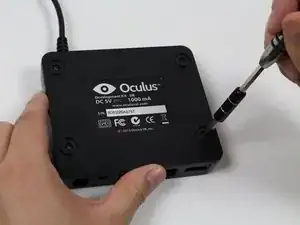

Use a Phillips #1 Screwdriver to unscrew the four 9mm Phillips screws on the bottom of the control box.
-

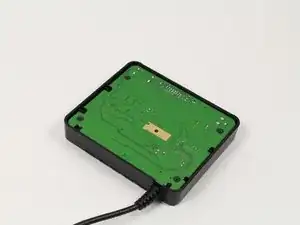

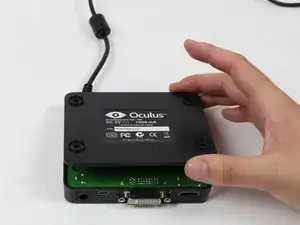

You can now remove the bottom lid of the control box. It should come apart easily.
-
Заключение
To reassemble your device, follow these instructions in reverse order.
