Nortel Networks i2004 IP Speaker Replacement

Автор: Elizabeth
  • Комментарии: 0
Nortel Networks i2004 IP Speaker Replacement

Сложность

Difficult

Шаги

8

Необходимое время

15 - 20 минут

Введение

If you can't hear the other line, then your speaker is broken. Use this guide in order to replace the damaged speakerphone speaker.

  1. HYGoXgxMmPaUi1Ls
    HYGoXgxMmPaUi1Ls
    eEHRMvFhOkjMP3QW
    SVtn2AaYUhVTrgkO

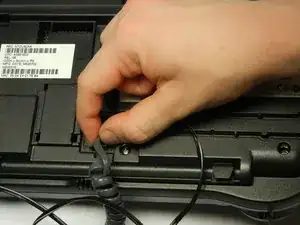

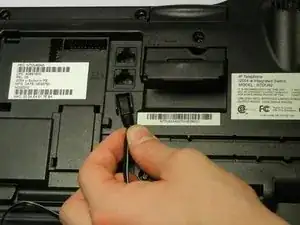

    • Flip the phone over to view the back.

    • Remove the power and phone cords.

  2. gCKcKKbUf1CZSeTj

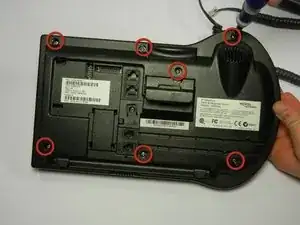

    • Remove the seven 8mm Phillips #2 screws.

  3. YkCivGGjoANphGNi
    YkCivGGjoANphGNi
    b3MHThUbmViYFC1Q

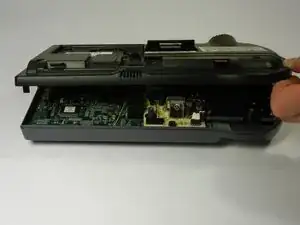

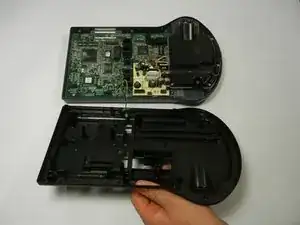

    • Lift up the back cover slowly because there are still wires attached to the circuit board.

    • Lifting the back cover should not require a lot of force; simply lift with your fingertips.

  4. EC5vCIjGyREmbRoc

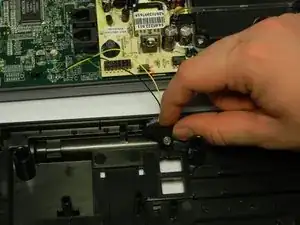

    • Disconnect the rubber piece by pulling it out of the slot, freeing the back cover completely.

  5. ADdeERYnPyoSTwb6
    ADdeERYnPyoSTwb6
    SY44DChUvI36cd4s

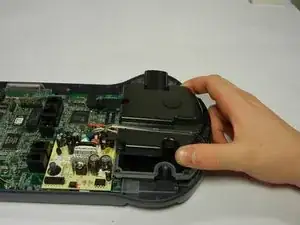

    • Remove the six 8mm Phillips #2 screws.

    • Pull the speaker phone cover straight up.

  6. aXOowrpwnesBkqRw

    • Lift the speaker straight up.

    • The speaker may need to be slightly wiggled in order to loosen and remove.

  7. CKSXYlwhYWQuHsCR

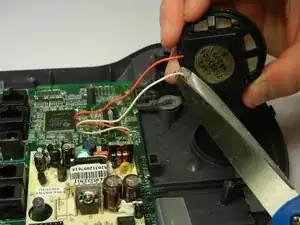

    • Cut the red and white wires as close to the speaker as possible.

    • Wire cutters are preferred, but normal scissors are fine too.

  8. BXMJjpuBnM2X5MlR
    BXMJjpuBnM2X5MlR
    gxHISup6xfdZXHej

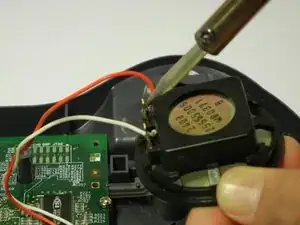

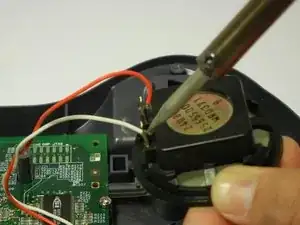

    • Solder wires to new speaker.

Заключение

To reassemble your device, follow these instructions in reverse order.
