This guide shows you how to remove the motherboard so that you can access the internal components in case of needed replacement.
Инструменты
-
-
Depress the button with your finger.
-
While the button is depressed, slide the back cover off of the phone.
-
-
-
Grasp the top and bottom of the front cover.
-
Grasp the phone body with your other hand.
-
Lightly pull the casing off of the phone.
-
-
-

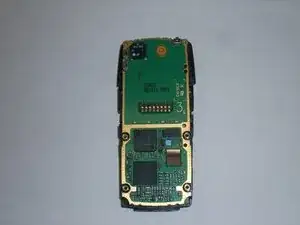

Grab the top and bottom of the phone casing.
-

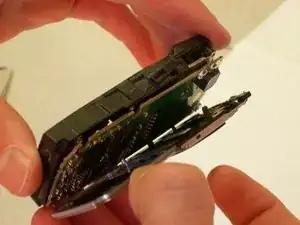

Carefully pull the motherboard apart from the bottom casing.
-

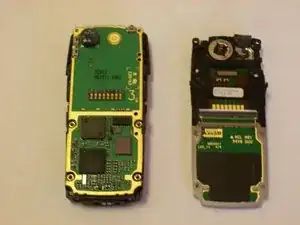

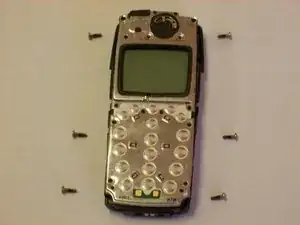

The circuit board should be divided into two parts.
-
-
-

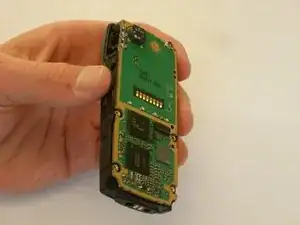

Grab the top and bottom of the remaining casing.
-

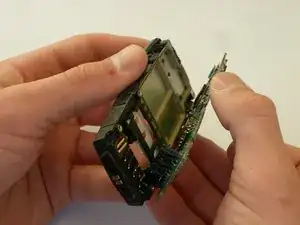

Carefully pull apart the casing from the circuit board.
-
-
-

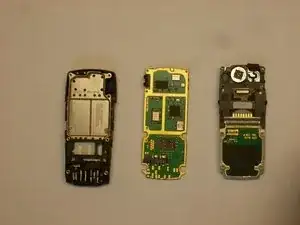

The circuit board should be divided into three parts, completely separate from the back casing, as shown.
-
To reassemble your device, follow these instructions in reverse order.
