Nokia 6200 Classic Vibrator Replacement

Автор: Reid Polstra
  • Комментарии: 0
Nokia 6200 Classic Vibrator Replacement

Сложность

Moderate

Шаги

6

Необходимое время

15 - 30 минут

Введение

This guide requires that the front plate, keypad, circuit board, back cover, and battery all be removed.

  1. tIgpTkVmiKO3c6ce
    tIgpTkVmiKO3c6ce
    bCZQI4PcbcCWH6oE
    AWhvaalLwLPFbP3q

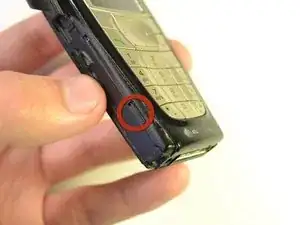

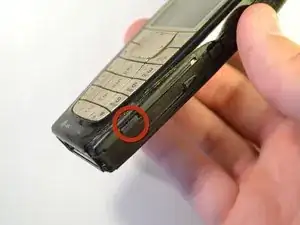

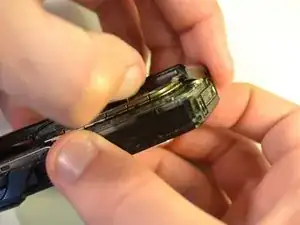

    • Pull up on both of the clips near the bottom of the phone as shown.

    • Lift off the front plate.

  2. 2WAZkWeCZPChwxLr

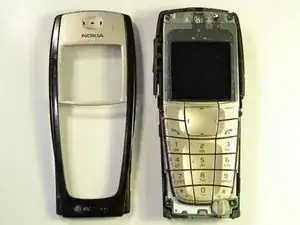

    • The keypad and LCD screen are revealed.

  3. m13MNZyq6AlYpdmq
    m13MNZyq6AlYpdmq
    4nCARVB5M1RB3HXR

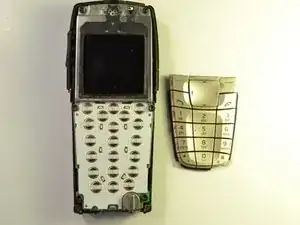

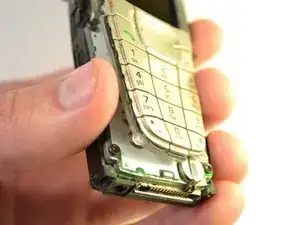

    • Separate the keypad from the phone and place aside.

    • Wipe off any excess dust from where the keypad was attached to the phone.

  4. jG2BBxoprUSBKiRV
    jG2BBxoprUSBKiRV
    dL54xFtO4NihaaBe

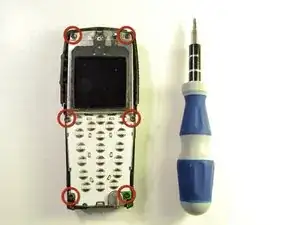

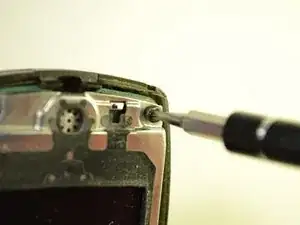

    • Remove the six screws highlighted by the markers using the screwdriver.

  5. 5jTZkRZd6qc2UGft
    5jTZkRZd6qc2UGft
    rNVsnp5AiuLsJNEZ

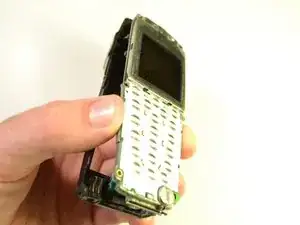

    • Separate the inside of the phone from the back of the phone.

  6. PBUU1Fho5DY3UKoX
    PBUU1Fho5DY3UKoX
    t6rBpN3FrPfKVI5c
    ZsxTrBuXIwfwoDFP

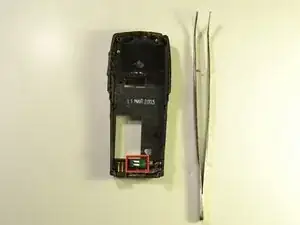

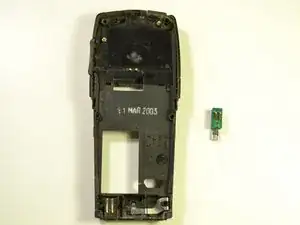

    • Locate vibration device on the bottom of the back cover.

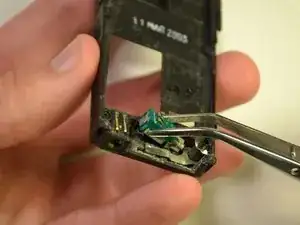

    • Pull up on the vibration device using tweezers.

    • Remove the vibration device and place it aside.

Заключение

To reassemble your device, follow these instructions in reverse order.
