Nintendo Switch Shield Plate Replacement

Сложность

Easy

Шаги

2

Необходимое время

10 - 45 минут

Введение

Follow this guide to replace the heat shield plate in a Nintendo Switch gaming console.

  1. Txe4YjEsfofDDJvM

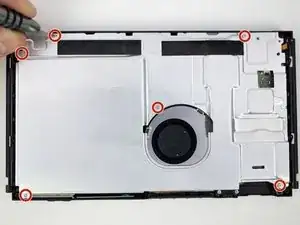

    • Remove the six 3.1mm Phillips #000 screws from the shield plate.

  2. A53eYjMsQpPLhgqH
    A53eYjMsQpPLhgqH
    HtB6sbKCvY5XmxqD
    CgMDsIepPRPfiPJ3

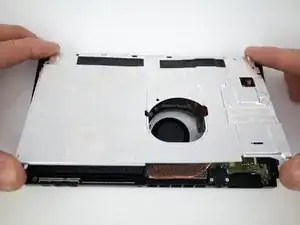

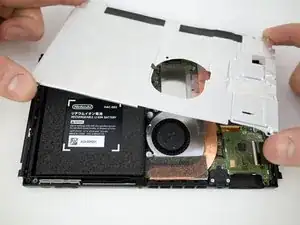

    • Remove the shield plate from the device.

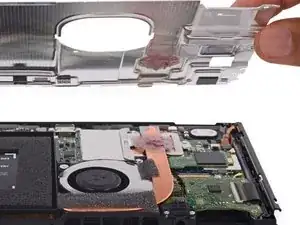

    • A thick pink thermal compound bridges the gap between the shield plate and the copper heat sink underneath. For best results, whenever the shield plate is removed, refer to our thermal paste guide to remove the old thermal compound and replace it with an appropriate, thick compound such as K5 Pro during reassembly.

Заключение

To reassemble your device, follow these instructions in reverse order.
