Введение
In the event that the bottom cover is damaged or specific wires require access, the bottom cover needs to be removed or replaced. For safety purposes, please remove the battery before working with any electronic components.
Инструменты
-
-

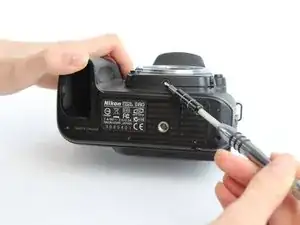

Use the #00 Phillips-head screwdriver to remove the three 8.44 mm screws.
-

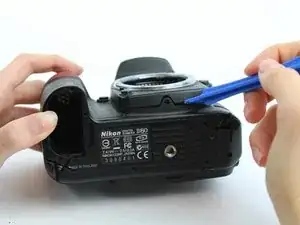

Use the #00 Phillips-head screwdriver to remove the four 6.3 mm screws.
-

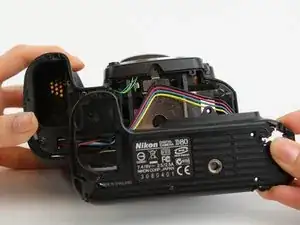

Use the #00 Phillips-head screwdriver to remove the 2.9 mm screw.
-
Заключение
To reassemble your device, follow these instructions in reverse order.
Один комментарий
The shutter make an attempt to work? It has power! I removed the bottom cover all wires are good?
Dale -
