Nikon Coolpix S70 Display Screen Replacement

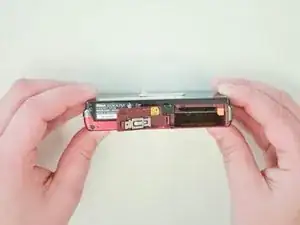

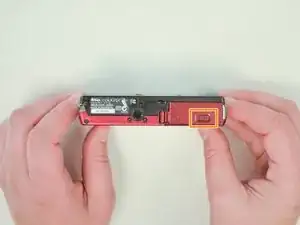

Remove the battery by sliding the latch located at the bottom of the camera.

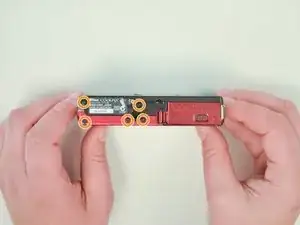

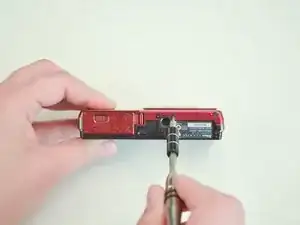

Using a Phillips head #000 screwdriver, remove the five 0.4mm screws on the bottom of the camera.

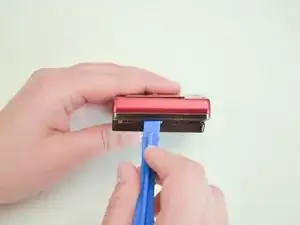

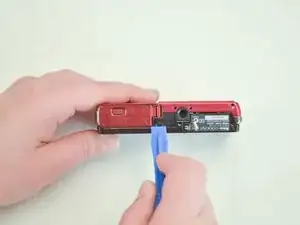

Use a plastic opening tool to carefully separate the back panel of the camera.

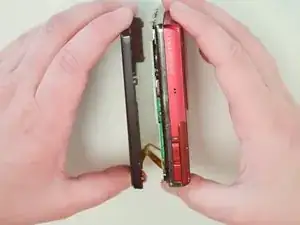

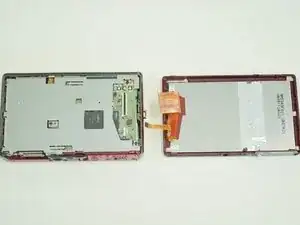

Once loosened, use your fingers to manually separate the two panels.

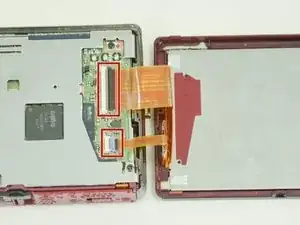

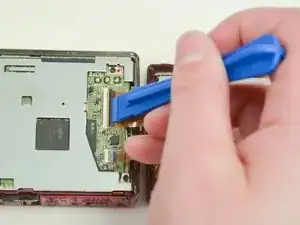

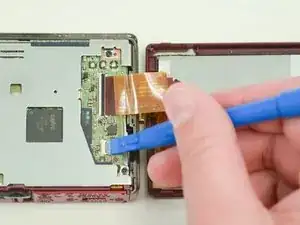

Using a plastic opening tool, lift both latches that hold the ribbon cables in place.

Carefully disconnect the orange flat ribbon cables from the latches.

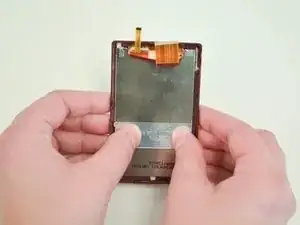

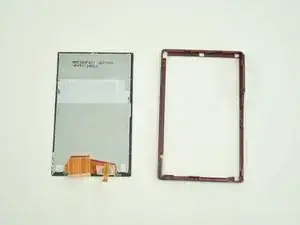

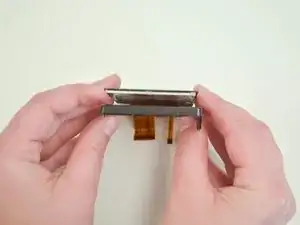

Remove the screen from the case of the camera by carefully pushing on the back of the screen.
