Netgear WGR614v9 Capacitor Replacement

Автор: Kyle Moore
  • Комментарии: 1
Netgear WGR614v9 Capacitor Replacement

Сложность

Moderate

Шаги

10

Необходимое время

Нет оценки

Введение

This guide will take you through the process involved with removing a capacitor. De-soldering and soldering will be required.

  1. PUOm6cJT3t1UOAqv

    • Rotate the device so that the bottom is facing up.

  2. Pbx1oLZVUEDK1QO6
    Pbx1oLZVUEDK1QO6
    ub4YFSRPNfdyPsDi

    • Lift up all four rubber pads on the bottom of the router with the plastic opening tool.

    • Be careful not to pull the rubber pads all the way out when lifting as they are difficult to reinsert.

  3. IHhU4GXgYgoltmWJ
    IHhU4GXgYgoltmWJ
    xHiOMyBxtD3ok2of

    • Unscrew the four 11.8 mm T-8 torx screws from the bottom of the router.

  4. OVfc6fhP31lWy4AP

    • Lift the bottom casing straight up from the router.

  5. jKCOiWqTaEXiEFpP

    • Remove the clear plastic casing by lifting it straight up from the router.

  6. RHQf2N3RXsLRB4VS
    RHQf2N3RXsLRB4VS
    EAsy5RJ1myghGC6x

    • Separate the motherboard from the top shell by lifting it straight up from the router.

  7. YTXOphJSPSyXTcA1
    YTXOphJSPSyXTcA1

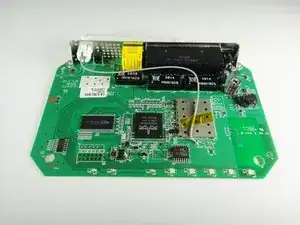

    jeGDIlYVlgRsosyx

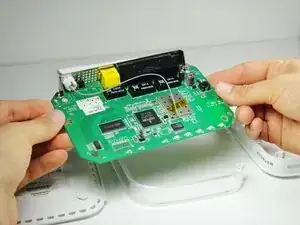

    • Rotate the motherboard so that the top is facing up.

    • Set the motherboard on a flat clean surface.

  8. RyEZXsUnBQXNv4kB
    RyEZXsUnBQXNv4kB
    Jj1OQlFcTvvsIWHG

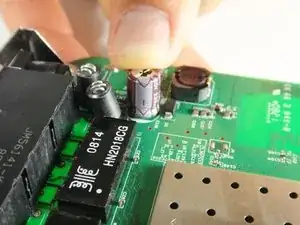

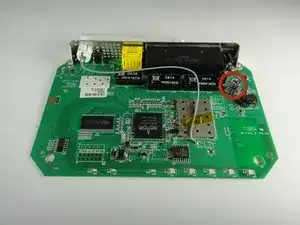

    • The capacitor can be found at the location shown.

  9. J53n3q4VGaGn5cJQ
    J53n3q4VGaGn5cJQ
    BeZLU2VAQNKiOBWN

    • Rotate the motherboard so that the bottom is facing up.

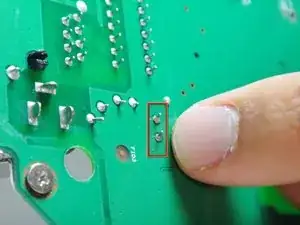

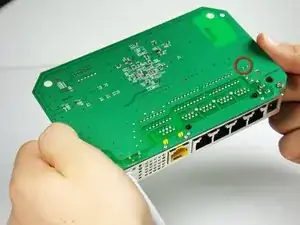

    • Locate the two soldered contacts of the capacitor.

  10. onhKxZpUq1nThbwi
    onhKxZpUq1nThbwi
    mDNVCsrdYRf4DBBm
    WAt5ZFWhtVNKcELr

    • Rotate the motherboard 180 degrees.

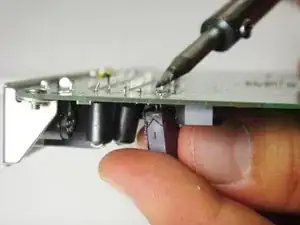

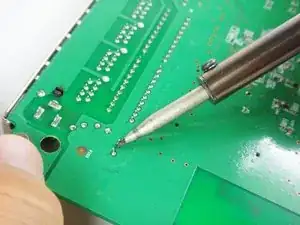

    • Do not refer to the pictures in this step for proper de-soldering and soldering techniques. They are for illustration purposes only.

    • Refer to this link for proper de-soldering and soldering techniques.

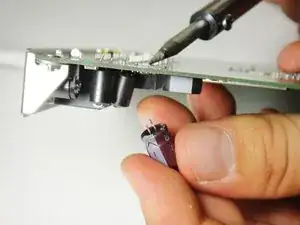

    • Pull the capacitor from the other side of the circuit board once the solder is liquified.

    • To replace the capacitor, orient the negative side of the capacitor (indicated by a white stripe and a negative sign) so that it aligns with the shaded white region of the circle indicating the capacitor's position on the motherboard.

Заключение

To reassemble your device, follow these instructions in reverse order.
