Netgear WGR614v9 Antenna Replacement

Автор: Ryan Murphy
  • Комментарии: 0
Netgear WGR614v9 Antenna Replacement

Сложность

Moderate

Шаги

11

Необходимое время

15 минут

Введение

This guide will take you through the process involved with installing an antenna. De-soldering and soldering will be required.

  1. PUOm6cJT3t1UOAqv

    • Rotate the device so that the bottom is facing up.

  2. Pbx1oLZVUEDK1QO6
    Pbx1oLZVUEDK1QO6
    ub4YFSRPNfdyPsDi

    • Lift up all four rubber pads on the bottom of the router with the plastic opening tool.

    • Be careful not to pull the rubber pads all the way out when lifting as they are difficult to reinsert.

  3. IHhU4GXgYgoltmWJ
    IHhU4GXgYgoltmWJ
    xHiOMyBxtD3ok2of

    • Unscrew the four 11.8 mm T-8 torx screws from the bottom of the router.

  4. OVfc6fhP31lWy4AP

    • Lift the bottom casing straight up from the router.

  5. jKCOiWqTaEXiEFpP

    • Remove the clear plastic casing by lifting it straight up from the router.

  6. RHQf2N3RXsLRB4VS
    RHQf2N3RXsLRB4VS
    EAsy5RJ1myghGC6x

    • Separate the motherboard from the top shell by lifting it straight up from the router.

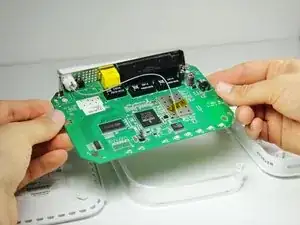

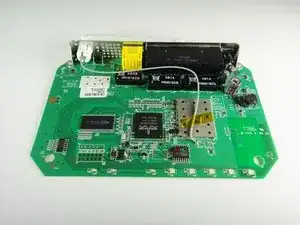

  7. cWPoiIqmNVXGjnlj
    cWPoiIqmNVXGjnlj
    UceYdjlbsCGFvk3n

    • Rotate the motherboard so that the top is facing up.

    • Set the motherboard on a flat clean surface.

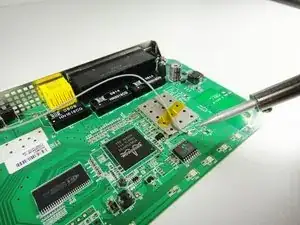

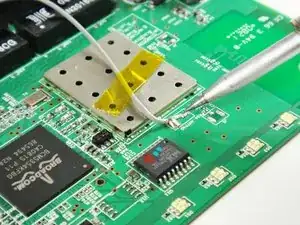

  8. No2Gk6wt5HX1Zjqs
    No2Gk6wt5HX1Zjqs
    MsbcQ24P3LlKndRd

    • Do not refer to the pictures in this step for proper de-soldering and soldering techniques. They are for illustration purposes only.

    • Refer to this link for proper de-soldering and soldering techniques.

    • Be patient. This may take some time depending on the quality of your soldering iron.

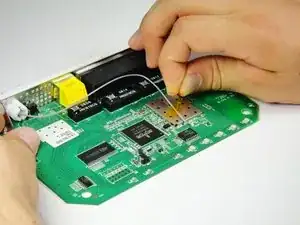

  9. poFhJQygWxsfKwEG

    • Peel off the yellow tape holding the wires.

    • Set the tape aside on a clean surface so that it can be reused.

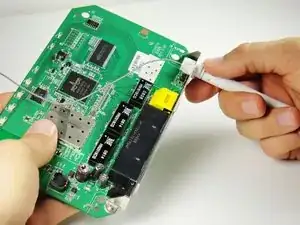

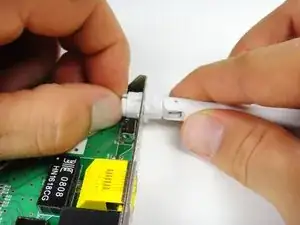

  10. CZKKLxnj1NXVVTgp
    CZKKLxnj1NXVVTgp
    qDNhS2jnEZNui1Ca

    • Extend the antenna outwards from the device so that it is straight.

    • Locate the clips that hold the antenna onto the router.

    • Push the clips in with one hand and pull the antenna out with your other hand. Slightly twist the antenna until it becomes free from the hole.

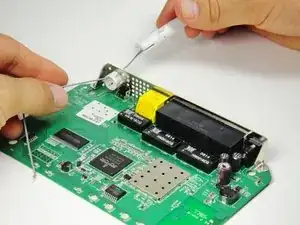

  11. Xs33LkCbQfdv3iN3

    • Pull out the antenna as well as the connected wire.

Заключение

To reassemble your device, follow these instructions in reverse order.
