Neato XV Signature Battery Replacement

Автор: Colton Gregory
  • Комментарии: 0
Neato XV Signature Battery Replacement

Сложность

Easy

Шаги

6

Необходимое время

5 минут

Введение

To reassemble your device, follow these instructions in reverse order, installing new batteries in the place of the old batteries. Make sure your Neato is powered off before beginning this repair.

Инструменты

Запчасти

  1. 6d5RG4IK6PKOQXBZ

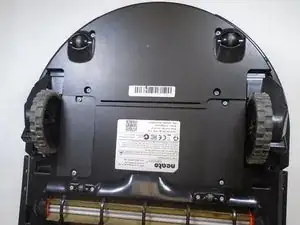

    • Place the Neato with the bottom side facing up.

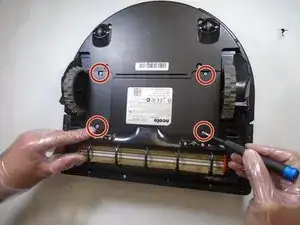

  2. LVFjfOhm1TIjlSOu

  3. mHTPQTl4ssvKUwCJ
    mHTPQTl4ssvKUwCJ
    Vsjx6JLQTDHCWk2J

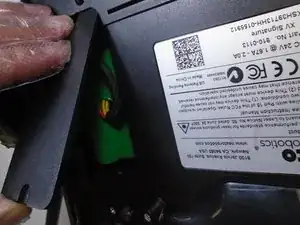

    • Remove the battery compartment covers.

  4. ftniqJkiyZKAE2Ie

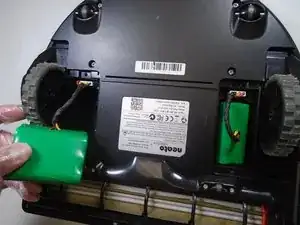

    • Lift up the battery pack to access the battery cable connection.

  5. mZCM4q4JueWSVHGT

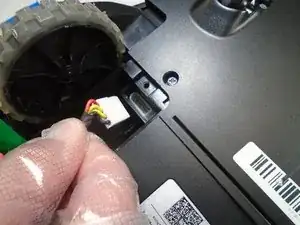

    • Unplug the battery cable by gently pulling on the cable connector.

  6. 5yaKRQIyLTxZ4ZhK
    5yaKRQIyLTxZ4ZhK
    mAbcxLYp1mRuuPaw

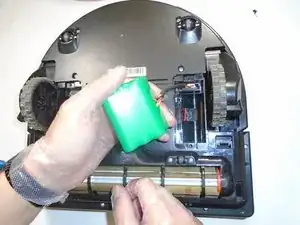

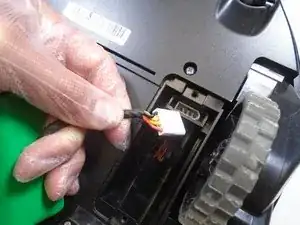

    • Repeat Steps 4 and 5 for the second battery.

Заключение

To reassemble your device, follow these instructions in reverse order.
