Neato Botvac 65 Brush Replacement

Автор: Joseph Caton
  • Комментарии: 1
Neato Botvac 65 Brush Replacement

Сложность

Moderate

Шаги

4

Необходимое время

8 минут

Введение

Step by step instruction on how to replace the brush for the Neato Botvac 65.

Инструменты

  1. A2Ql3LCyPNY2NsVC

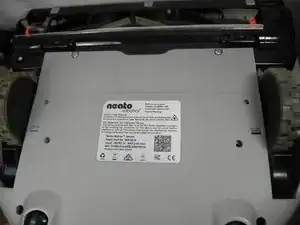

    • Flip the device upside down.

  2. wNZjRGqkZ6ZBrBC5
    wNZjRGqkZ6ZBrBC5
    PbDMYCNpFycGiPkA

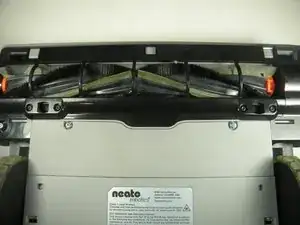

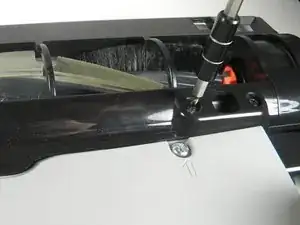

    • Use the screwdriver to take off the four (4) 10mm screws located near the brush which secure the plastic guard.

  3. IDBotYh1w5sPbKOJ
    IDBotYh1w5sPbKOJ
    ZrixqfqHOuAYmlnn

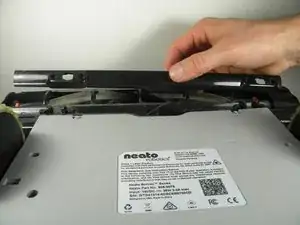

    • Remove the plastic brush guard.

    • Pull off the plastic covering the brush.

  4. gNHfTKW1fNUNRDXX

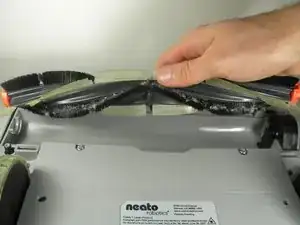

    • Lift the brush to clean or replace.

Заключение

To reassemble your device, follow these instructions in reverse order.
