Nabi 2S Battery Replacement

Сложность

Very easy

Шаги

6

Необходимое время

5 минут

Введение

This guide will aid you in the process of removing the battery of the device. This is useful in replacing a broken or dis-functioning battery.

  1. 1ZqiTlgxyXHXJ6XD

    • Remove the red rubber case from the device.

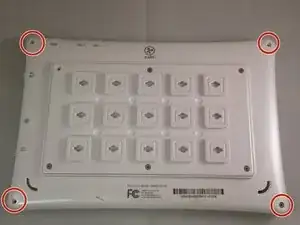

  2. FGQtSMl5mRiWrG3Z
    FGQtSMl5mRiWrG3Z

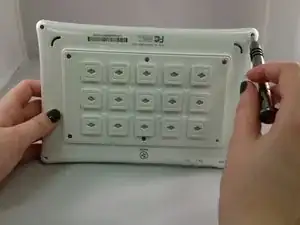

    QkEvKFt1TtppgCkC

    • Make sure the screen is facing away from you and the back cover is facing you.

    • Using a Phillips #0 Screwdriver, unscrew the 3mm screws counter-clockwise in each corner of the plastic back cover. It will be a total of four screws. The smaller case on the back cover is attached to the main cover so it will not need to be removed.

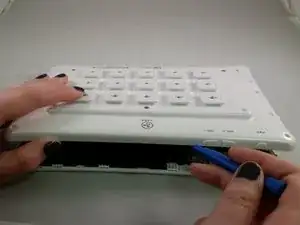

  3. DC53iXlqcXo6bqAq

    • Using the plastic opening tool, remove the case.

    • Removing the case will take a bit of effort and force. We recommend using two hands and if possible another person to help. It will require some gusto.

    • It is helpful to pry at the corners first to loosen the case.

  4. cyfxEWlvrlXCrXZH

    • After the back case is loosened, remove it from the device to change or access the battery.

  5. IIykS6AUalKrsNGu
    IIykS6AUalKrsNGu

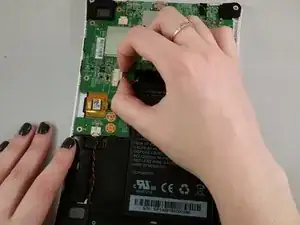

    2KJ4kKdpkD1s3NKV

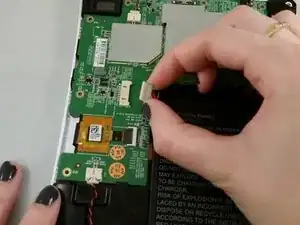

    jyNsILxfBXENAq6G

    • Grasp the circuit connected to the battery via wires.

    • Slide the wires from the circuit to detach it.

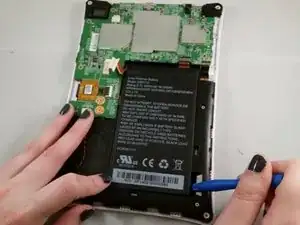

  6. AYXX333OwTXFfFEW
    AYXX333OwTXFfFEW

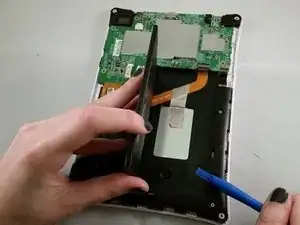

    5IsEC1htAvKRAtMY

    • After the circuit is detached, the battery will be easily removable.

    • Don’t rip the battery off of the board.

    • The battery is stuck with adhesive tape to the board.

    • Use a plastic opening tool to apply pressure to the battery and lift it up from the adhesive.

Заключение

To reassemble your device, follow these instructions in reverse order.
