NETGEAR WGT624 v3 Motherboard Replacement

Автор: Corey Worthington
  • Комментарии: 0
NETGEAR WGT624 v3 Motherboard Replacement

Сложность

Moderate

Шаги

6

Необходимое время

30 минут

Введение

Removing the motherboard will allow you to replace it, or give you access to the other components that are attached to it.

  1. V6qAE3xo3ETcsUPt

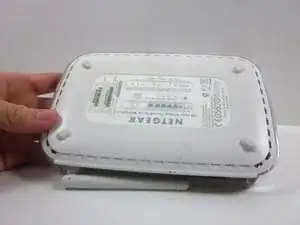

    • Turn the device so that the bottom is facing up.

  2. HfLKlfn1POushN5C
    HfLKlfn1POushN5C
    T1rdEJuU51M4xIcp
    xRxFBxwNoyTOTkyE

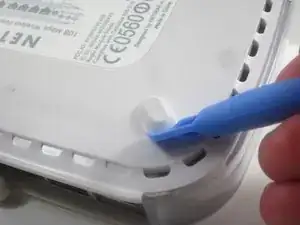

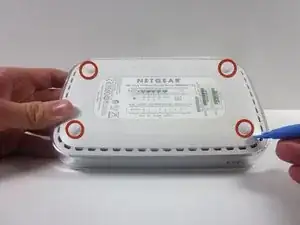

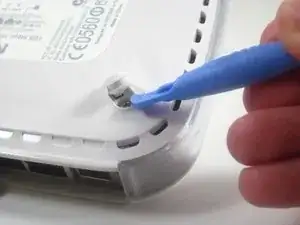

    • Use the plastic opening tool to carefully lift the rubber stops in each corner.

    • Do not completely remove the rubber stops, because they are difficult to replace.

  3. X5cBjW2YyNFv1tGI
    X5cBjW2YyNFv1tGI
    5u4cfJdemplNBtJx

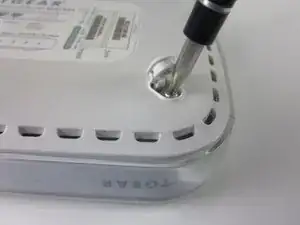

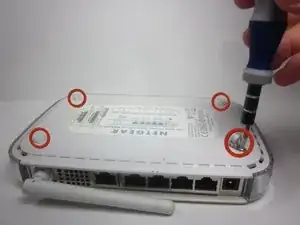

    • Unscrew the 4 11.8 mm T-8 Torx screws from each corner of the device.

  4. WQMOmqQGAwLrFm4X
    WQMOmqQGAwLrFm4X
    VIHvuhBSJh4wwXSl

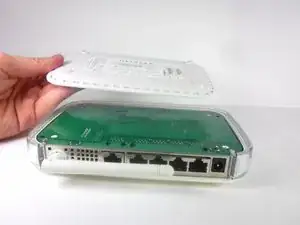

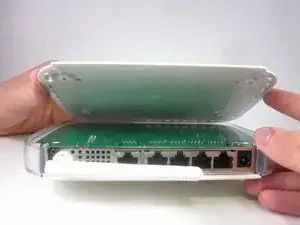

    • Lift the lower case straight up from the rest of the router.

  5. XsWUcfGOXxeAuJWV
    XsWUcfGOXxeAuJWV
    MjXFBtnDHAOIjeGJ

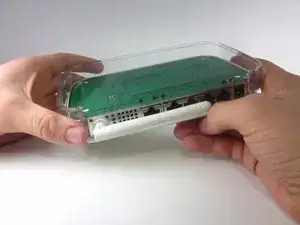

    • Remove the clear plastic casing by lifting it straight up from the router.

  6. hEpVMWvM2COMejTi
    hEpVMWvM2COMejTi
    pLXdfUslHSgU1Pn4

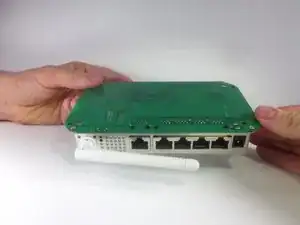

    • Separate the motherboard from the top shell by lifting it straight up from the router.

Заключение

To reassemble your device, follow these instructions in reverse order.
