Motorola Triumph Speaker Replacement

Автор: greg
  • Комментарии: 0
Motorola Triumph Speaker Replacement

Сложность

Moderate

Шаги

7

Необходимое время

Нет оценки

Введение

You will learn how to access your motherboard using the screwdriver and replace your speakers using the spudger.

  1. wjLfFNschOn3q6qy
    wjLfFNschOn3q6qy

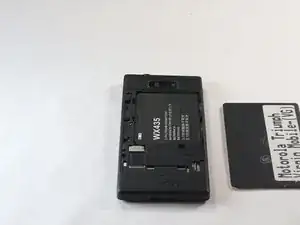

    sGWwiFBpjxpPVM2F
    CSCRXinTFTjIfZxF

    • Slide the back cover down.

    • Lift the back cover up.

    • Pry the battery out with the spudger

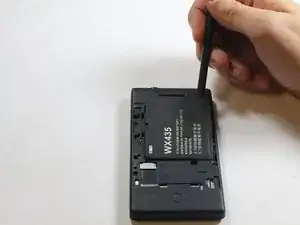

  2. yBdSPVM64g3uRafU

    • Gently pry out the battery using the spudger

  3. kweYDv5pMCSrOYev

    • After removing the Battery remove the two screws with a T4 screwdriver.

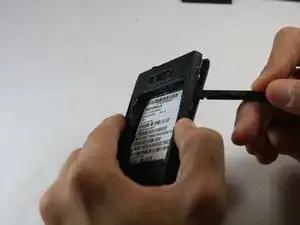

  4. RUWHeVVaBOUA5vsS

    • With the spudger, go around the seam of the phone and pry away the back chassis.

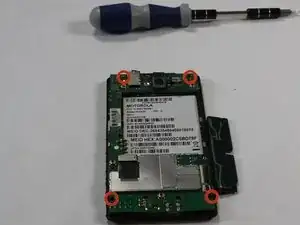

  5. VOPmcNGHPgCLScO2

    • Using the T5 screwdriver, remove all the four screws shown in the picture.

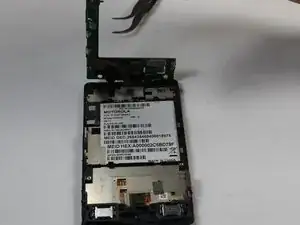

  6. AT2FIRocMgaKSJx1

    • Lift up the motherboard out of the device,

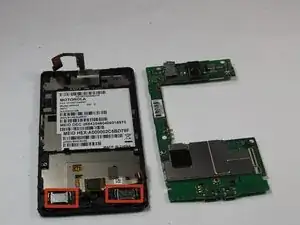

  7. NvnECJxk3L55I2FM

    • Pry the speakers out using the plastic spudger.

Заключение

To reassemble your device, follow these instructions in reverse order.
