Motorola Triumph Camera Replacement

Slide the back cover down.

Lift the back cover up.

Pry the battery out with the spudger

Gently pry out the battery using the spudger

After removing the Battery remove the two screws with a T4 screwdriver.

With the spudger, go around the seam of the phone and pry away the back chassis.

Using the T5 screwdriver, remove all the four screws shown in the picture.

Lift up the motherboard out of the device,

Pry the speakers out using the plastic spudger.

Locate the camera at the top of the motherboard.

Use the the spudger to unclip the connector above the camera.

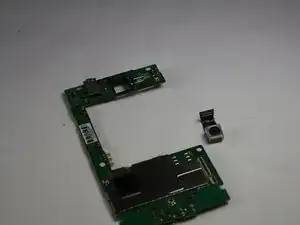

Remove the camera.
