Motorola Moto X 2nd Generation Front Camera Replacement

Автор: Sophia
  • Комментарии: 3
Motorola Moto X 2nd Generation Front Camera Replacement

Сложность

Moderate

Шаги

7

Необходимое время

Нет оценки

Введение

Before you begin, download the Software Fix app to backup your device and diagnose whether your problem is software or hardware related.

  1. dtTLnHjMx2FjOZTf
    dtTLnHjMx2FjOZTf

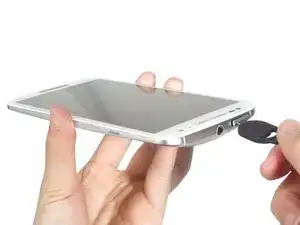

    LNuUIcCOPDpSvHRu

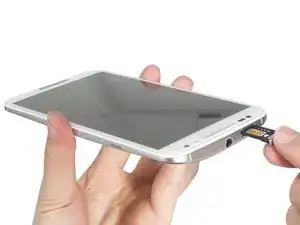

    4ZLBP2LIEe2fEdFq

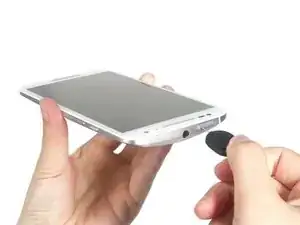

    • Remove SIM card tray. Remember to power off the phone at first.

  2. YC3SOfGLQkBauXBV
    YC3SOfGLQkBauXBV
    s4KvDuGKBfXIkH15

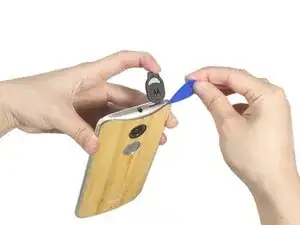

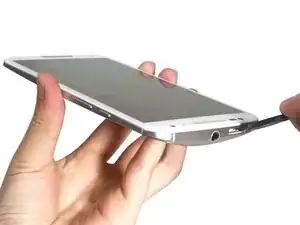

    • Push the eject pin to open a gap and place a guitar pick into the gap.

  3. nOIR3wgMuYOeqWFH

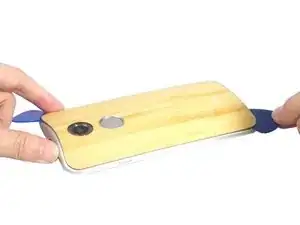

    nOIR3wgMuYOeqWFH

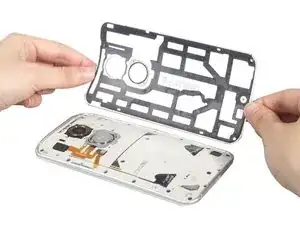

    HtYhqmkYgvbHvWD2

    • Slide the guitar pick to cut the adhesive sticker and peel off the soft back cover carefully.

  4. Gqxv5KhFhbBjMNng
    Gqxv5KhFhbBjMNng
    2PAwybmAU2yrYgPq

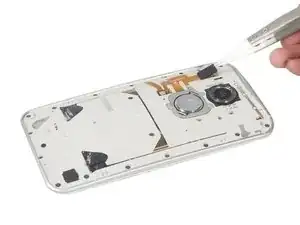

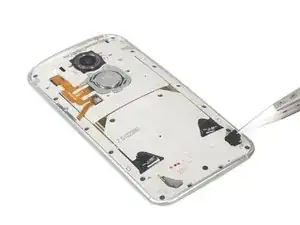

    • Remove those two pieces rubber cover.

  5. ROUGxivsDQgicudL
    ROUGxivsDQgicudL

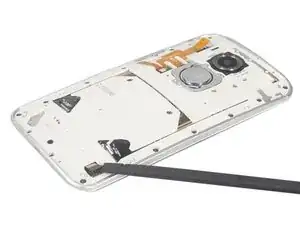

    ENntXNsTbqdFDxVD

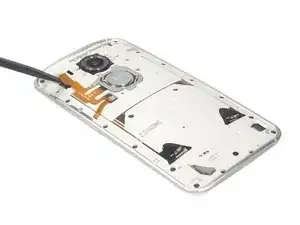

    • Release power button connecting flex connector and battery connector.

  6. YjSqhTNdPICtmUi1
    YjSqhTNdPICtmUi1
    mXU4RHkaP1MEXbXg

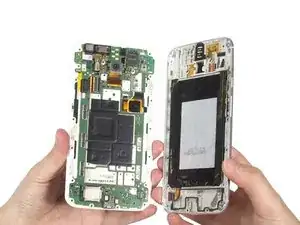

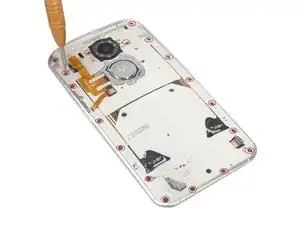

    • Twist off all 18 black torx screws and remove middle housing from front assembly.

  7. 5laecwBrWrAoUDI3

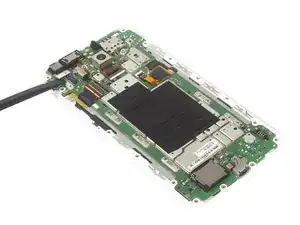

    5laecwBrWrAoUDI3

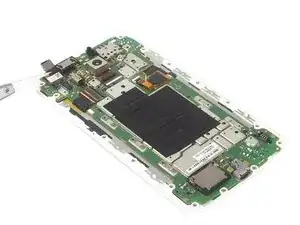

    ZRytdG4RQlUQTBGu

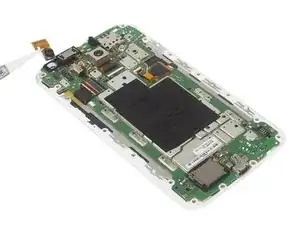

    vtNtDu1cEjO4IrVK

    • Release front camera connector and remove it.

Заключение

To reassemble your device, follow these instructions in reverse order.
