Motorola Moto G4 Plus Battery Replacement

Автор: Andre Rives
  • Комментарии: 0
Motorola Moto G4 Plus Battery Replacement

Сложность

Moderate

Шаги

6

Необходимое время

10 - 15 минут

Введение

This guide will walk you through the process of replacing a dead or dying battery in a Motorola Moto G4 Plus phone.

  1. XOKMWSILCSIOEHes
    XOKMWSILCSIOEHes
    tOEQBsGCZgQ4ublj

    • Hold your Motorola G4 Plus face down. Pry off the rear cover using a spudger or your fingers.

  2. cbWXyfiSgH5n4UQP
    cbWXyfiSgH5n4UQP
    ZY2NDDhERKlMtlDt

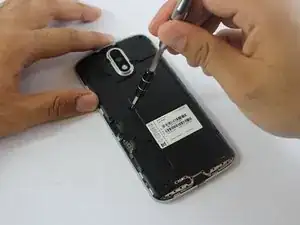

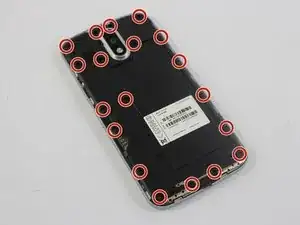

    • Remove the nineteen (19) 3.0 mm T3 Torx screws securing the midframe.

  3. HNrcHVYOMYWZuwHu
    HNrcHVYOMYWZuwHu
    aIQeWPkYYOtdEBRj
    bWGO1U5OyW3hyV2t

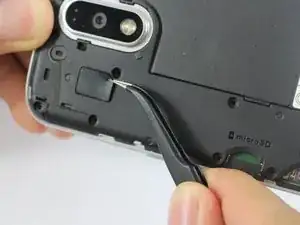

    • Remove the small silicon cover to the left of the camera using tweezers.

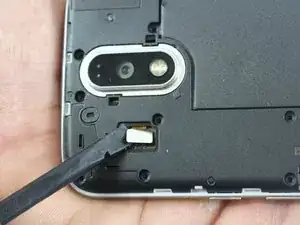

    • Using the spudger tool, lift up the cable found underneath the silicon cover.

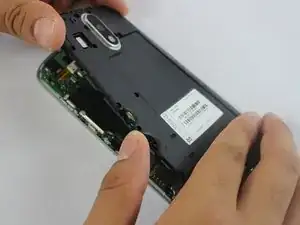

    • Remove the back panel assembly.

  4. aJdRdRweytPOuSoe
    aJdRdRweytPOuSoe
    DPRqCFrfmqruUbkP

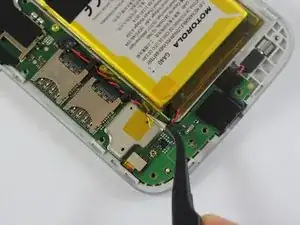

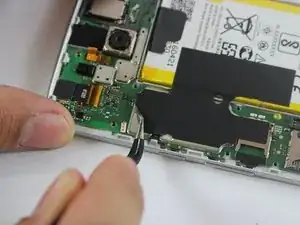

    • Using tweezers, remove the yellow stickers and black film connecting the battery to the motherboard.

  5. fgs2NZVrcS5AfaUM

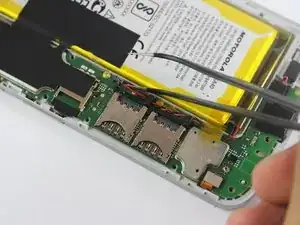

    • Using tweezers, disconnect the red and black battery cable from the motherboard.

  6. f2LVHtYVXLpFDKdx

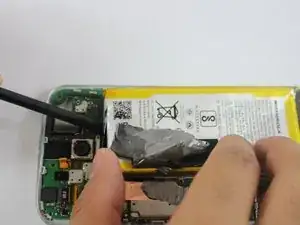

    • Pry off the battery using a spudger.

    • The battery is kept in place with a strong adhesive. It may require some jostling to remove.

Заключение

To reassemble your device, follow these instructions in reverse order.
