Motorola Droid Pro SD Card/SIM Card PCB Board Replacement

Автор: Kyle Shays
  • Комментарии: 1
Motorola Droid Pro SD Card/SIM Card PCB Board Replacement

Сложность

Moderate

Шаги

5

Необходимое время

10 минут

Введение

Before continuing make sure you power down your device and work in a clean area. Also wear a static band to prevent damages to your device.

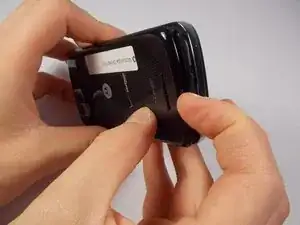

  1. jjZk36VvEuLuQsaL

    • Remove the back cover using the thumb tab located on the bottom of the phone.

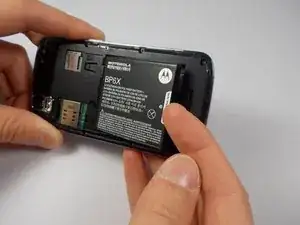

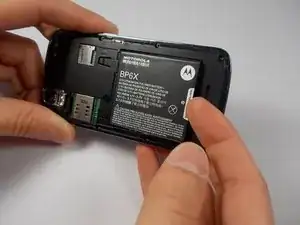

  2. oNCJjTkHNMIvMdEC
    oNCJjTkHNMIvMdEC
    L5odJeNFannATFdO

    • Remove the battery using the thumb tab.

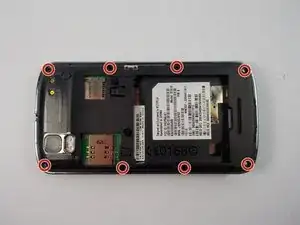

  3. tKRs3wDitb5gs4EV
    tKRs3wDitb5gs4EV
    Nq34AeJWpIHOJjP2

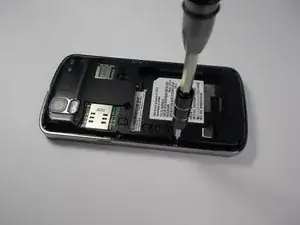

    • Using a T4 Torx driver, remove the eight 4 mm back panel screws.

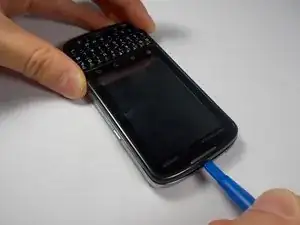

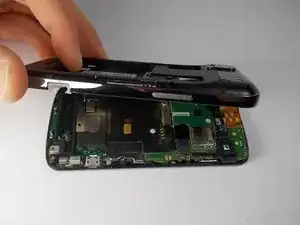

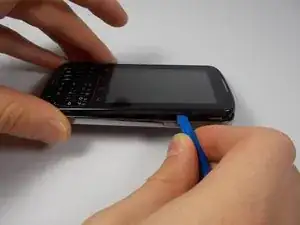

  4. GbDgpdXcaaTdbKME
    GbDgpdXcaaTdbKME
    XsVPexLrXDJCImWR
    SNfnJQGVZuYDctRG

    • Use a plastic opening tool to open the phone along the sides between the front panel and the chrome trim.

    • It is held together by small clips that lock in. You may have to use extra force to unlock them.

    • Go around on all sides of the phone, unlocking the clips. Then pull the back panel off.

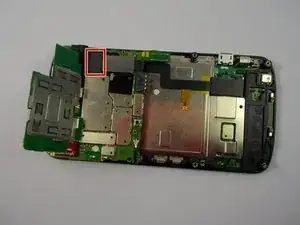

  5. oAVSRQQlyFYXVFOr
    oAVSRQQlyFYXVFOr
    SgUAK1TLmeVBlLga

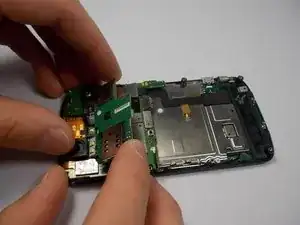

    • Gently lift the SD & SIM card board (PCB) as shown.

    • There is a ribbon cable attached underneath. Gently pull the PCB board away from the phone and it will detach easily.

Заключение

To reassemble your device, follow these instructions in reverse order.
