Milwaukee Hex Impact Driver 2750-20 Directional Switch Replacement

Автор: Charles Putnam
  • Комментарии: 0
Milwaukee Hex Impact Driver 2750-20 Directional Switch Replacement

Сложность

Easy

Шаги

3

Необходимое время

15 минут

Введение

The following repair guide shows how to remove and replace the directional switch in a Milwaukee Hex Impact Driver 2750-20.

  1. dJCYvuJXrEMCRdVY

    • Remove the five T9 15.5 mm screws.

    • Remove the single T9 19.5mm screw.

    • Remove the two T9 37mm screws.

  2. FllNOyWWXk5Il6hX

    • Remove the drill casing to expose the drill's interior parts.

  3. 2aqXMSFZiIJBXxXA
    2aqXMSFZiIJBXxXA
    YgVftwQTEMXrpvQm
    yrwuVrlLqaAxcMIP

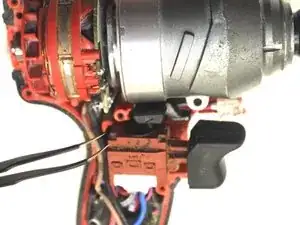

    • Remove the trigger assembly completely.

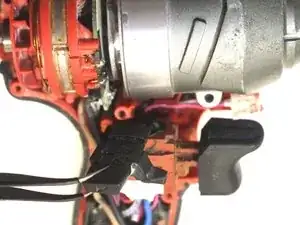

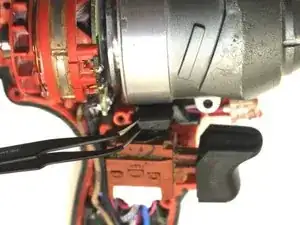

    • Remove the directional switch by lifting upward using a pair of tweezers, clearing the alignment pole on the trigger assembly.

    • Insert a new directional switch by aligning the hole on the switch with the pole on the trigger.

Заключение

To reassemble your device, follow these instructions in reverse order.
