Milwaukee Hex Impact Driver 2750-20 Chuck Drive Shaft Replacement

Автор: Charles Putnam
  • Комментарии: 0
Milwaukee Hex Impact Driver 2750-20 Chuck Drive Shaft Replacement

Сложность

Moderate

Шаги

4

Необходимое время

5 минут

Введение

The following repair guide shows how to remove and replace the chuck drive shaft in a Milwaukee Hex Impact Driver 2750-20.

  1. dJCYvuJXrEMCRdVY

    • Remove the five T9 15.5 mm screws.

    • Remove the single T9 19.5mm screw.

    • Remove the two T9 37mm screws.

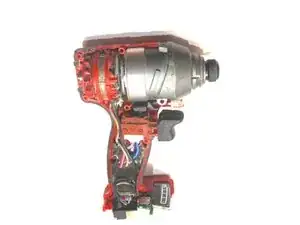

  2. FllNOyWWXk5Il6hX

    • Remove the drill casing to expose the drill's interior parts.

  3. xB2daIRkIvLXNmjV
    xB2daIRkIvLXNmjV

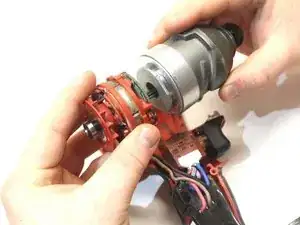

    6LKXfQ2WIvXu3XcY

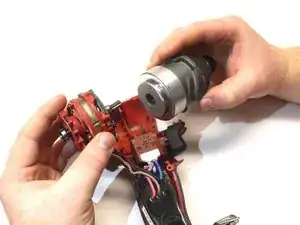

    mBGyvZbUAEQjEHbr

    • Pulling directly outward, remove the driver head from the motor assembly by picking it up out of the casing.

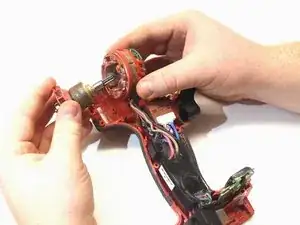

  4. RaWXtFEIYpvYFKuq

    • Remove the drive shaft assembly from the motor coils.

    • There will be resistance when removing the drive shaft as there is magnetism working against you.

Заключение

To reassemble your device, follow these instructions in reverse order.
