Microsoft Surface Pro 4 Battery Replacement

Автор: StacyAnn Brown
  • Комментарии: 0
Microsoft Surface Pro 4 Battery Replacement

Сложность

Difficult

Шаги

6

Необходимое время

2 часов

Введение

The official guide has been updated and can be found here. This guide is archived for historical purposes.

How to remove and replace Microsoft Surface Pro 4 Battery.

  1. GjvJYxwwxCJfQZGy

    • Disconnect black wire from motherboard.

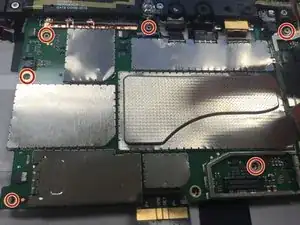

  2. XmAxbROS1sGRGja3

    • Remove the six 1.5 mm Torx T3 screws securing the motherboard.

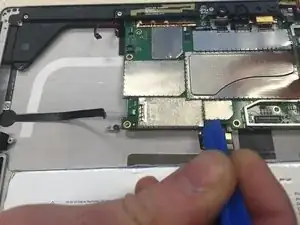

  3. TxhBRyICWNIVWnNF

    • Use plastic opening tool to remove metal casing at the bottom left corner of the motherboard.

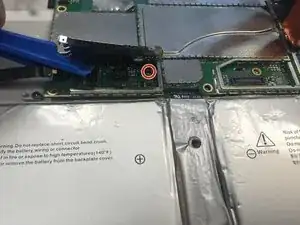

  4. 4NcIwFHQ4ERyvQq6

    • Remove remaining screw.

    • 2.0 mm Torx T4 screw.

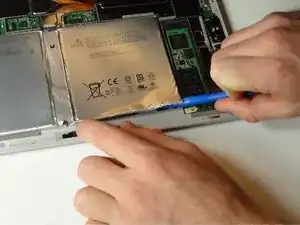

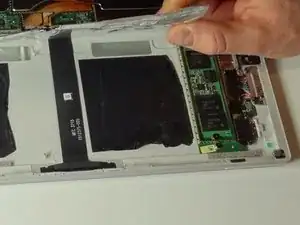

  5. nYvPD5xmvnZxDLiZ
    nYvPD5xmvnZxDLiZ
    g5aCCofNa5QXuwIp

    • The battery is attached to the device by strong adhesive tape. Use a plastic opening tool to pry around the underside of the battery.

    • Peel the battery up and away from the bottom of the device.

    • Do not use metal tools for this step. the battery can leak harmful substances if punctured.

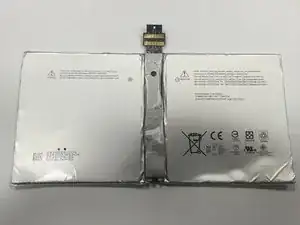

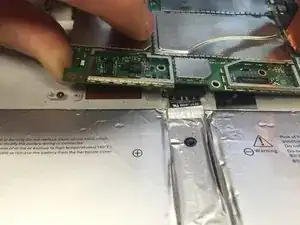

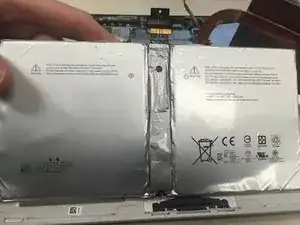

  6. bvo6lvHKV1E6otG5
    bvo6lvHKV1E6otG5
    DJfTmDWKO5uqTOms
    eTIQPhG6aO5mMJqo

    • In order to prevent a short circuit, insert a piece of cardboard, paper or plastic between the battery connector and motherboard before sliding the battery cable out from under the motherboard.

    • Also be careful to protect the motherboard from shorts while placing the cable for the new battery.

    • Detach the battery from under the motherboard. Remove from the device.

Заключение

To reassemble your device, follow these instructions in reverse order.
