Dexter 800W Corded Angle Grinder - 800AG2-125.5 Motor Replacement

Автор: Céline Chemineau
  • Комментарии: 0
Dexter 800W Corded Angle Grinder - 800AG2-125.5 Motor Replacement

Сложность

Easy

Шаги

15

Необходимое время

5 минут

Введение

This guide will show you how to replace the motor in your device

Инструменты

  1. cXR2YxkVwnJhsIqj

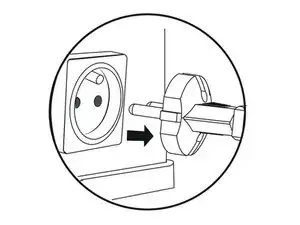

    • Before you begin, remember to disconnect the mains plug.

  2. I53UwSjB2ijBPFKJ
    I53UwSjB2ijBPFKJ
    aLQy1OqTiAWo1KWr

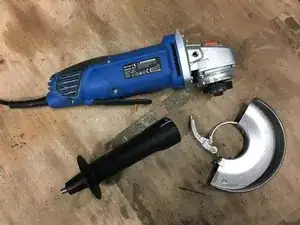

    • Remove the side handle and the protective cover.

  3. PLAOIUbW3KSpIINF
    PLAOIUbW3KSpIINF
    RAp6WAfbMGjZFx2E

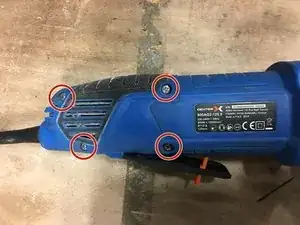

    • Unscrew the 4 screws to open the machine.

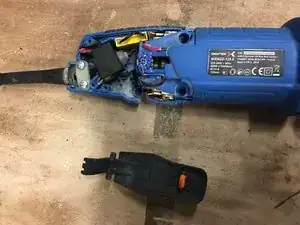

  4. ThMVyXQFdVFUtBtr

    • Remove the paddle switch for better access.

  5. Remove the two pods.

    • Remove the two pods.

  6. Relax the blade springs.

    • Relax the blade springs.

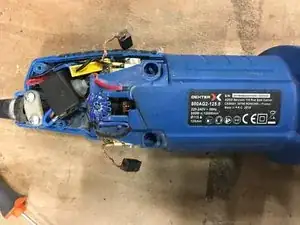

  7. oURkkPJpp2aLoDAC

    • Relax the carbons.

  8. 6JIMRCfdTTpPjhSY

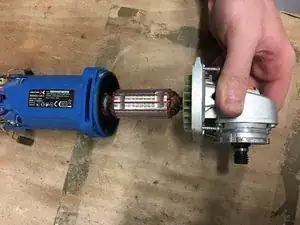

    • Unscrew the four head screws and remove the motor.

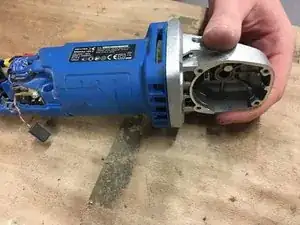

  9. TByU1lDSPeSPVw2v

    • Put the new motor back.

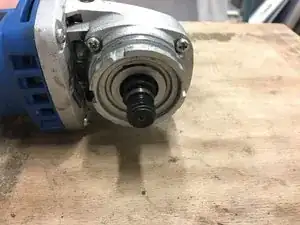

  10. XYYdpL4GPkISGeWa

    • Re-grease and replace gear case.

  11. wKAZ4fVIcmtDJB4O
    wKAZ4fVIcmtDJB4O
    JTFxTsvDCBjTPcFP

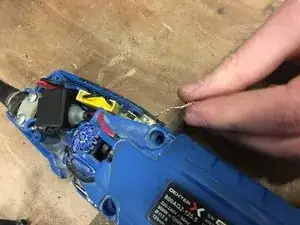

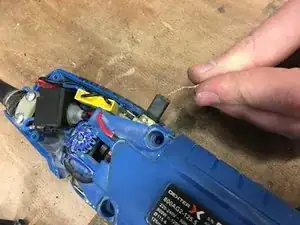

    • Replace the carbons.

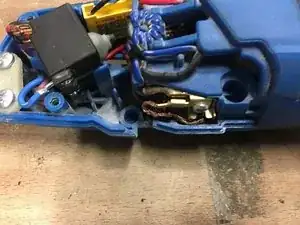

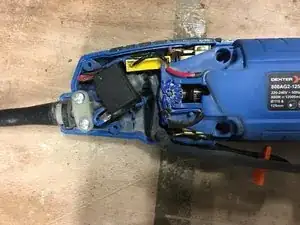

  12. vE2r64t4DdMHbneZ
    vE2r64t4DdMHbneZ
    xIoNoqEsrullFJXC
    QXasT6Pog36DeSip

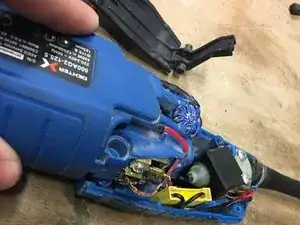

    • Then reconnect the carbons.

  13. HEKRPVbHJiOO5QBA

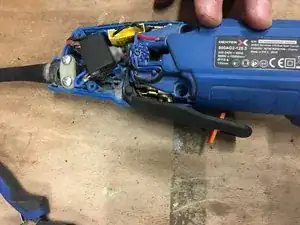

    • Replace the paddle switch.

  14. d5EfsiaNIU1MxDDM

    • Tighten the 4 screws to close.

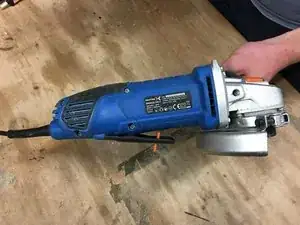

  15. gvoYBTyORBKfdiiO
    gvoYBTyORBKfdiiO
    6DnUw3p1MSGvgtMn

    • Replace the outer flange, protective cover and side handle.

Заключение

By the end of the guide you will have replaced the motor in your device.

To reassemble perform the steps in reverse.
