Dexter 800W Corded Angle Grinder - 800AG2-125.5 Carbon Replacement

Автор: Céline Chemineau
  • Комментарии: 0
Dexter 800W Corded Angle Grinder - 800AG2-125.5 Carbon Replacement

Сложность

Moderate

Шаги

12

Необходимое время

5 минут

Введение

This tutorial shows you the change of only one carbon, to change the second you just have to follow the same method.

Инструменты

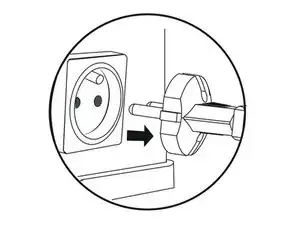

  1. mlKiFjcREVGLs1bG

    • Before you begin, remember to disconnect the mains plug.

  2. JtNUGOOhuB1PqcQw
    JtNUGOOhuB1PqcQw
    IkAXXotFVCUl3Vn3

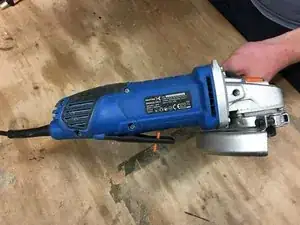

    • Remove the side handle and the protective cover.

  3. tlydCdINNuYnUfNW
    tlydCdINNuYnUfNW
    qX6GBRgtqTOwUccA

    • Unscrew the 4 screws to open the machine.

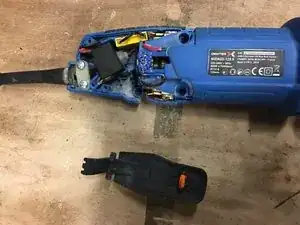

  4. uqJeGLBr1aXJGcMa

    • Remove the paddle switch for better access.

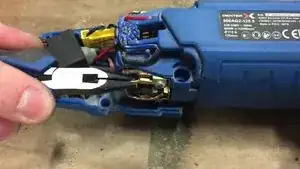

  5. Remove the two pods.

    • Remove the two pods.

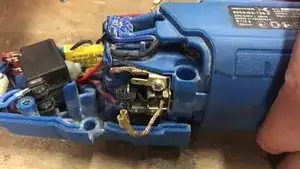

  6. Relax the blade springs.

    • Relax the blade springs.

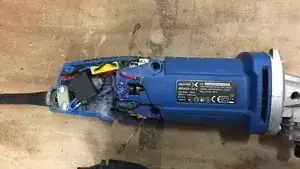

  7. Take out the carbons.

    • Take out the carbons.

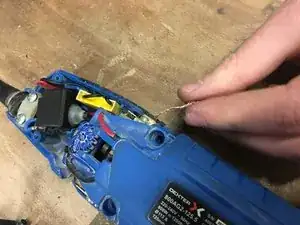

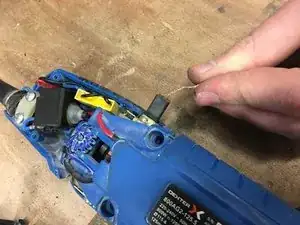

  8. vWlKmcXGV6fMfcXi
    vWlKmcXGV6fMfcXi
    FbbqC3FKLpvDrX1A

    • Replace the new carbons.

    • Pay attention to the direction: the cable coming out of the carbon must be on the side of the head of the device and not towards the power cable.

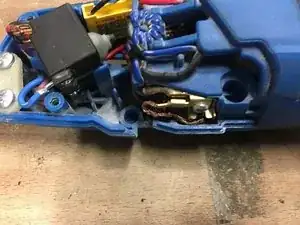

  9. JGBK6UPoFPgdAxKP
    JGBK6UPoFPgdAxKP
    EUZ2Wg6HDhjdq4Kh
    brHmpDuRGJBudmjJ

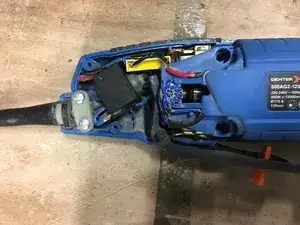

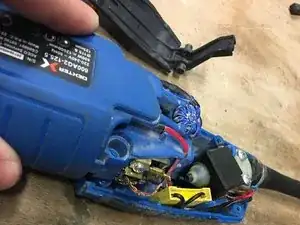

    • Reconnect the carbons.

  10. jQDyIBtX4vGW266G

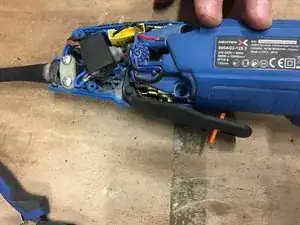

    • Replace the paddle switch.

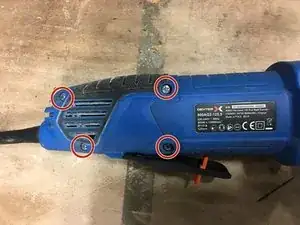

  11. OCBSaa1sGdT1O1hV

    • Tighten the 4 screws to close.

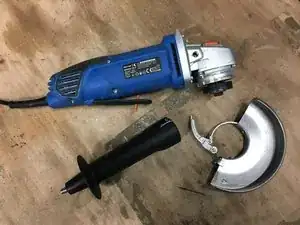

  12. RSTvHJuOIiGRfLDk
    RSTvHJuOIiGRfLDk
    12wEEcJfq2JjIUUU

    • Replace the outer flange, protective cover and side handle.

Заключение

by the end of the guide you will have replaced the carbon in your device
