Makita DT01 Trigger Switch Replacement

Автор: Victoria Scira
  • Комментарии: 0
Makita DT01 Trigger Switch Replacement

Сложность

Moderate

Шаги

11

Необходимое время

10 минут

Введение

This will teach you how to replace your trigger switch on your Makita DT01 drill.

Инструменты

  1. 2GRhsZuoYUNhc6wM
    2GRhsZuoYUNhc6wM
    a2xdYNFVdBYeGp5h
    kJkARrnChX5PISi3

    • Lay the device down on its side.

  2. AaEMkqWtGqiCZXkZ

    • Pinch the indents on both sides of the battery.

  3. b23VlN3b3EoL1FC3

    • Pull the battery out of the drill

    • Recharge or completely replace the battery

    • Make sure that the battery is removed before further working on the drill. This is so the drill doesn't accidentally activate.

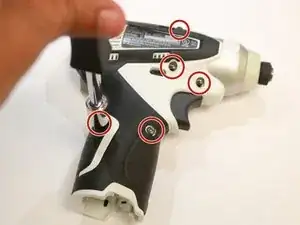

  4. LcJZH5aBLFs1SLVF

    • Unscrew all six 15mm screws with a JIS1 screwdriver bit.

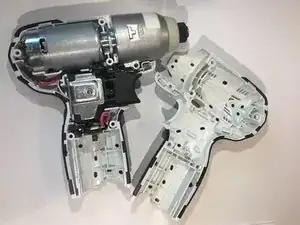

  5. bbvOfkiMpFZL1XSA

    • Remove the top of the plastic drill case

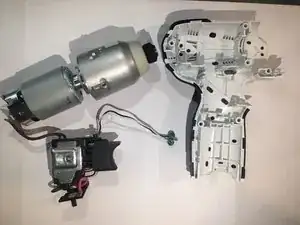

  6. N4XRcBoEbFuITGbI

    • Remove the bottom of the plastic drill case

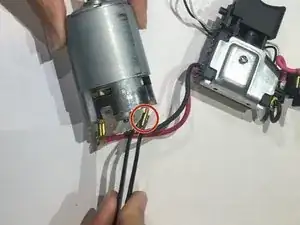

  7. H5K4fQaOiSTCJTeW

    • Use your tweezers to remove the black wire from the motor

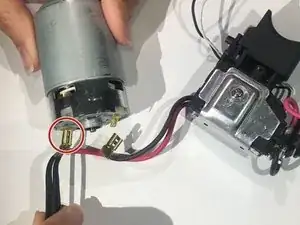

  8. U2FxPTQUxUNOKbY1

    • Use your tweezers to remove the red wire from the motor

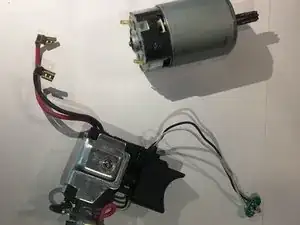

  9. 3vJCcqmrjhEfPoX6

    • Your trigger switch should now be removed from your motor

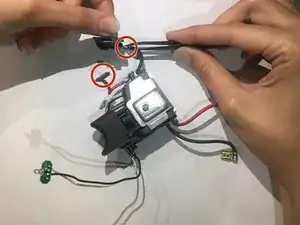

  10. tLfSGUIxgJyTlhgv

    • Use your tweezers to remove the red and black wires from the two-pronged plug

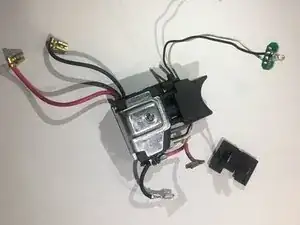

  11. PcGMWEYjTNbs3elR

    • Your trigger switch is now detached from the device

Заключение

To reassemble your device, follow these instructions in reverse order.
