MSI GT72 2QE Dominator Pro RAM Replacement

Автор: Nate
  • Комментарии: 1
MSI GT72 2QE Dominator Pro RAM Replacement

Сложность

Easy

Шаги

3

Необходимое время

5 минут

Введение

Want to replace your RAM? This guide will show all the steps you need to remove your old one.

Инструменты

  1. gL1VuEV6P5EfA32N

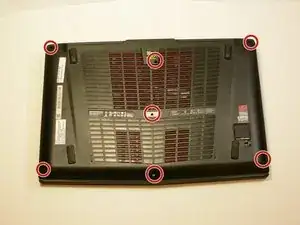

    • Remove the 7 indicated 6mm Phillips #00 screws.

    • Same PH0 screwdriver can be used in all steps.

  2. wXJntrmiUgnrJMuQ

    • With the screws out, remove the bottom door.

  3. nXKwHS5KaTidL4cD
    nXKwHS5KaTidL4cD
    M6uADt5bjahyJAxA

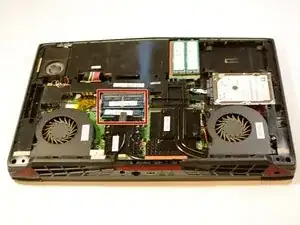

    • Pull back clamps holding the RAM to remove it from the socket.

Заключение

To reassemble your device, follow these instructions in reverse order.

Автор

Nate

Участник c: 18/04/17

128 Репутация

Один комментарий

This guide is incomplete. There's 4 RAM slots, you've only shown the 2 on the near side of the motherboard.

luke -
