MSI GE62 Apache Pro 004 Speakers Replacement

Автор: Majid Al Hashmi
  • Комментарии: 0
MSI GE62 Apache Pro 004 Speakers Replacement

Сложность

Moderate

Шаги

5

Необходимое время

15 - 20 минут

Введение

This guide will show how to replace the speakers on the MSI Apache Pro 004 laptop.

  1. VrmK6rcAvhQa1YJJ

    • Start with the bottom of the laptop facing up.

  2. NycatHDJJLWqP66X
    NycatHDJJLWqP66X
    KCSglUYRMRDsWs52

    • Remove the 15 screws from the bottom of the laptop with a PH1 screwdriver.

    • Remove the bottom plate by pulling away from laptop

    • Keep track of all the screws and which slot they came from, as they slightly differ. We recommend this system: lay out on a piece of paper and pretending the paper is the device. Place the screws on the paper approximately where they would go

  3. qAj1pPlDDiRKVqMR
    qAj1pPlDDiRKVqMR
    I6vR212yFcG1Pabl
    5HjShsZMGeY6By6e

    • Remove the screw holding down the battery with a PH1 screwdriver.

    • Pull out the battery.

  4. Ebg6kGIflHVCQWbp
    Ebg6kGIflHVCQWbp
    AwXg1kFgDKbY2yrM
    OLcmdA5JeS41gNDg

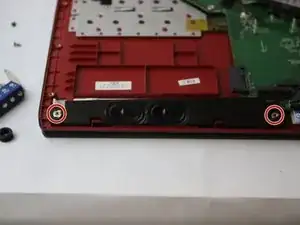

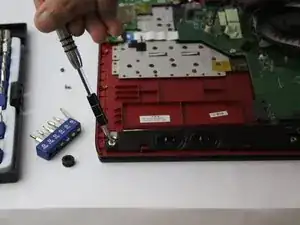

    • Remove the four screws, two on each speaker, with a PH1 screwdriver.

  5. JkjSURp111ePKCkL
    JkjSURp111ePKCkL
    bxU6PlVSGbBl3FnM

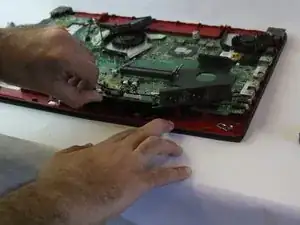

    • Gently pull back the speakers until they release from their socket.

    • Keep track of which speaker went where. The connectors for the speakers are unique; you cannot use a speaker that should go on the right side on the left side and vice versa.

Заключение

To reassemble your device, follow these instructions in reverse order.
