Lunii - My Story Factory v2 - Selection Knob Removal

Автор: Benoit74

Сложность

Moderate

Шаги

Необходимое время

Нет оценки

Введение

This is a prerequisite tutorial only! It is part of another procedure and is not intended to be used on its own.

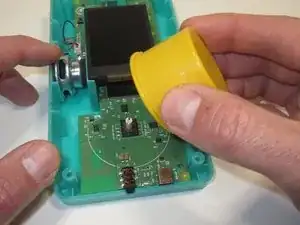

Remove the selection knob by pulling it upwards.

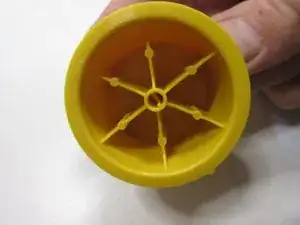

For reassembly, there's a small pin on one side of the knob axis which must match that of the component on the PCB.

Заключение

To reassemble your device, follow the steps in reverse.
