Little Beaver Augers MDL5HD 2017 Main Shaft Seal Replacement

Автор: Adam O'Camb
  • Комментарии: 2
Little Beaver Augers MDL5HD 2017 Main Shaft Seal Replacement

Сложность

Moderate

Шаги

7

Необходимое время

5 - 15 минут

Введение

Use this guide to replace the main shaft seal in a Little Beaver Augers MDL5HD 2017.

Remove the auger bit before starting this guide.

This procedure involves removing both main shaft seals, which are stacked atop one another. Make sure you have two replacement seals ready.

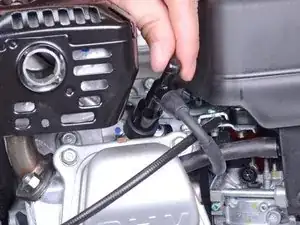

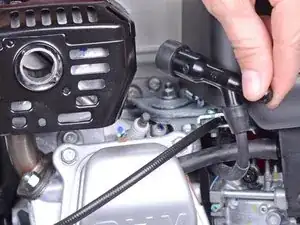

  1. KOJsTbo5eCCV1AME
    KOJsTbo5eCCV1AME
    nQTxRydaJQ2sFXKC

    • Before you begin, make sure the engine is switched off and cool to the touch.

    • Pull the spark plug connector straight off of the spark plug.

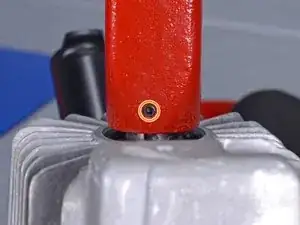

  2. XxHXfRKpCM5puRG1

    • Use a 1/8 inch hex key to loosen the set screw securing the main shaft adapter.

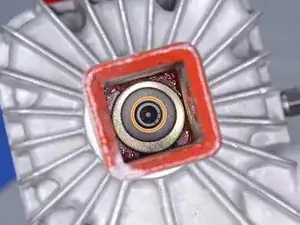

  3. bArAbYMVArusJHUC

    • Use a 1/4 inch hex key to remove the bolt securing the main shaft adapter to the main shaft.

  4. 5HvoDWSvETQoGQ5R
    5HvoDWSvETQoGQ5R
    WoUJTI5lioCXgjQO

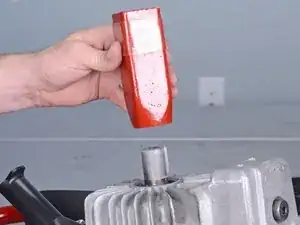

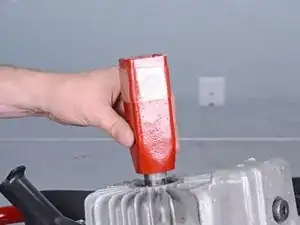

    • Remove the main shaft adapter.

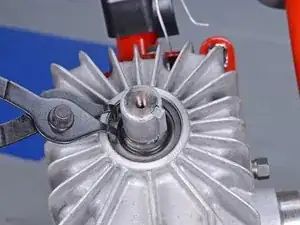

  5. SScs26fRcM4Z2BaQ
    SScs26fRcM4Z2BaQ
    5iYWFpoHubmmZEdY

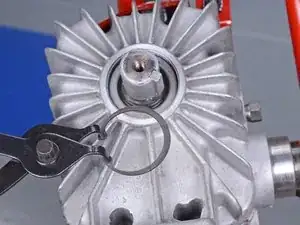

    • Use a set of snap ring pliers to remove the snap ring over the main shaft seal.

    • Before you continue, make sure the main shaft is facing upright. If it isn't, oil may leak out when you remove the seals.

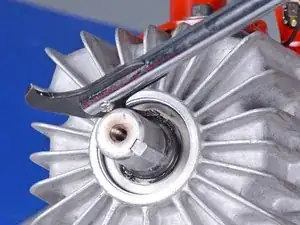

  6. QSfwVChmwUaMujiC
    QSfwVChmwUaMujiC
    u2LrtkT3WCsPWqY1

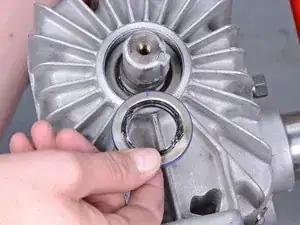

    • Use a seal puller to pry out the first main shaft seal.

    • Remove the first main shaft seal.

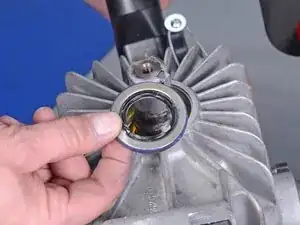

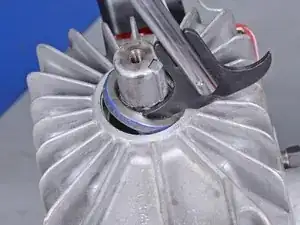

  7. rfCZKSZCAliLSmny
    rfCZKSZCAliLSmny
    KAP5epjgL4ByZ4FJ

    • Use a seal puller to pry out the second main shaft seal.

    • Remove the second main shaft seal.

Заключение

To reassemble your device, follow these instructions in reverse order.
