Lexus RX / Toyota Harrier Engine Air Filter Replacement

Автор: exomen
  • Комментарии: 0
Lexus RX / Toyota Harrier Engine Air Filter Replacement

Сложность

Easy

Шаги

6

Необходимое время

15 минут

Введение

Simple guide with pictures to replace engine air filter.

Инструменты

Запчасти

  1. bcOkvKVIDMdAwvJj

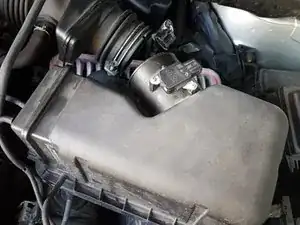

    • Find air filter cover under the bonnet

  2. mvWMSdFXDqxMpZ2X

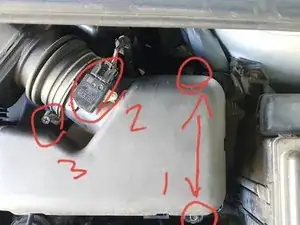

    • remove (1) screws

  3. HM3ePxeBnR6lM1Nf
    HM3ePxeBnR6lM1Nf
    b6P6JU4xGm6nqhqE

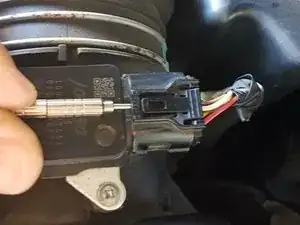

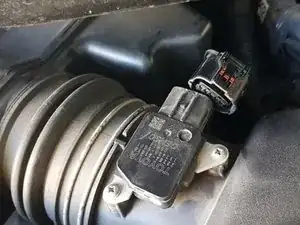

    • Unplug (2) the connector

  4. NdHGBRH1wnuaWCtA
    NdHGBRH1wnuaWCtA
    lKiTKyG3icylEsIo

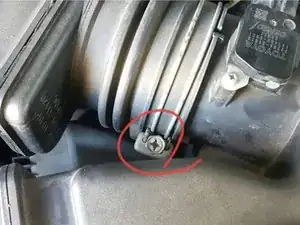

    • Insert wisdom here.

  5. DcByRe12BsqElBWI
    DcByRe12BsqElBWI
    Ggi5LfMwskRtmI2Z
    hJabIWkby3WV3atU

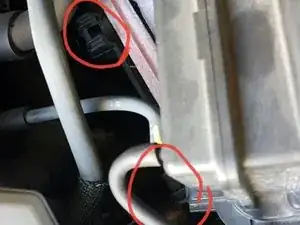

    • Safely remove the lid from 2 groves on the left side

  6. N1nylLIaJwwtraZU
    N1nylLIaJwwtraZU
    IAn4psBvcTaLoMMP

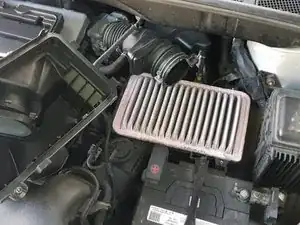

    • Replace the filter and assemble in reverse order.

Заключение

To reassemble your device, follow these instructions in reverse order.
