Lenovo Vibe Z2 Pro Ear Piece Speaker Replacement

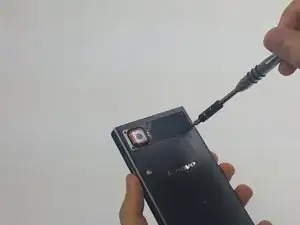

Remove the 4.9 mm torx head screws located on the camera plate on the back of the phone

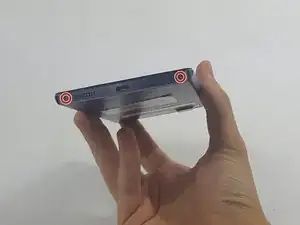

Remove the 3.65 mm Torx head screws at the bottom of the phone.

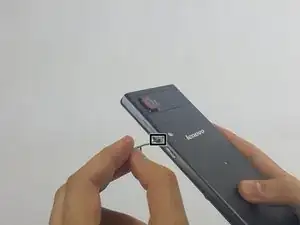

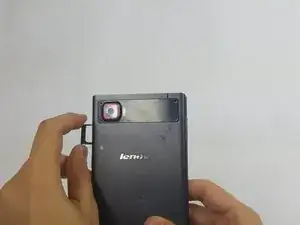

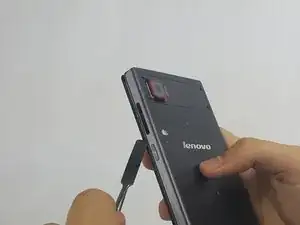

Remove the SIM card tray by pushing a pin into the hole on the side of the phone.

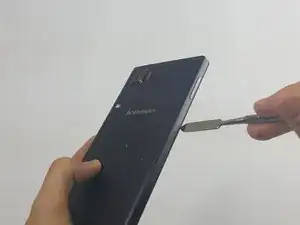

Push the Spudger along the gap between the phone and the backplate to separate them.

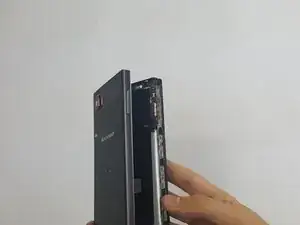

Carefully pull the backplate away from the phone.

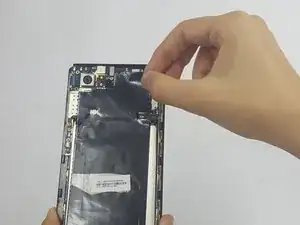

Peel away protective the film using your hands.

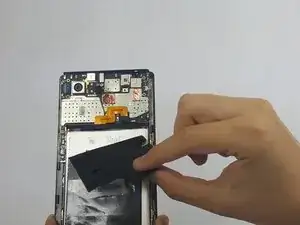

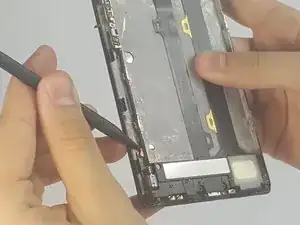

Remove any adhesive strips holding the battery in place gently using a fingernail or spudger.

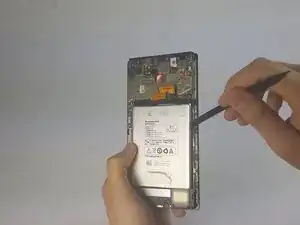

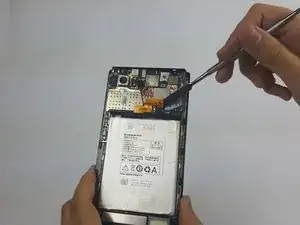

Disconnect the orange battery ribbon cable by gently lifting with a spudger.

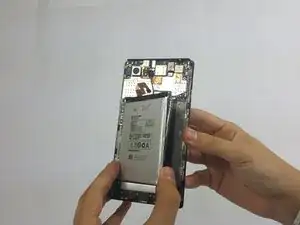

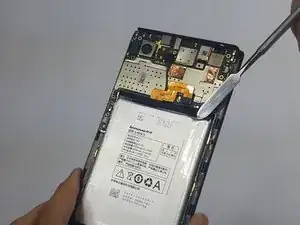

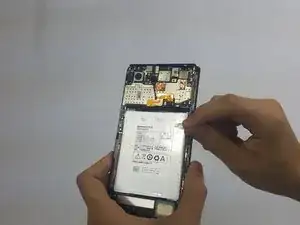

Insert a fingernail or spudger into either side of the battery and lift upward.

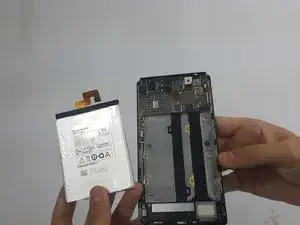

Remove the battery from phone.

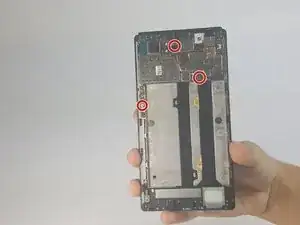

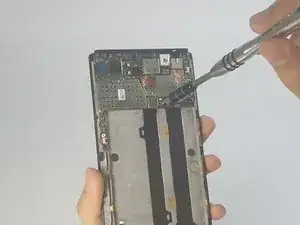

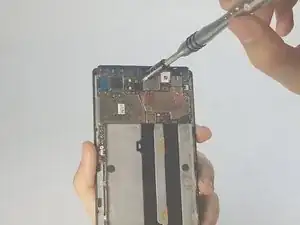

Remove the 3.15mm Phillips Head #000 screws from motherboard.

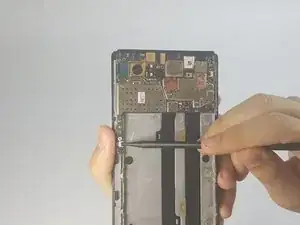

Disconnect the two ribbon cables by gently lifting on the black hinges and pulling away with tweezers

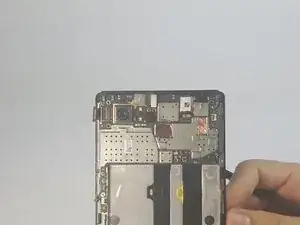

Gently disconnect the rear-camera connector

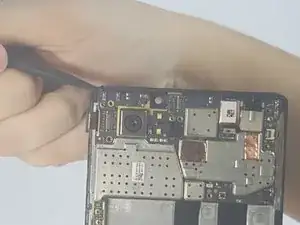

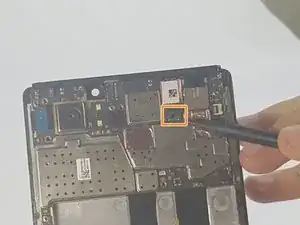

Gently remove the front-facing camera by gently lifting on the connector tab.

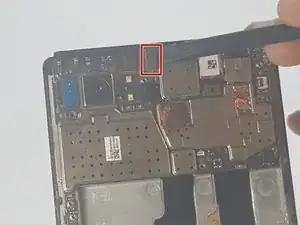

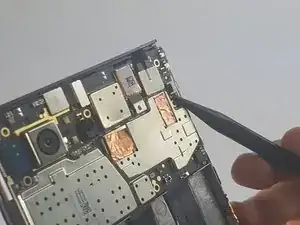

Remove the other connector by gently lifting with a spudger.

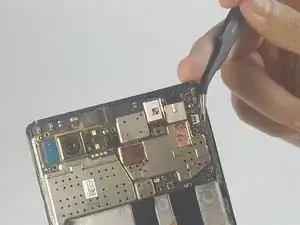

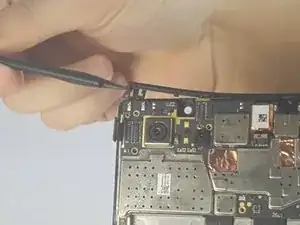

Pry off the plastic brace along the top edge of the phone

Remove the antenna connected to the bottom piece of the screen plate

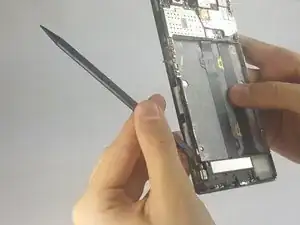

Gently lift the motherboard off the frame

Pull the camera out from behind the motherboard

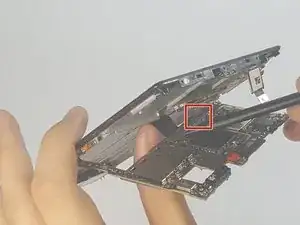

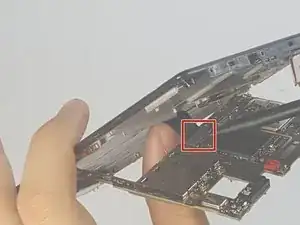

Using a spudger, disconnect the charging port assembly cable and the screen connection cable.

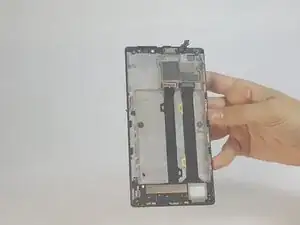

Remove the motherboard completely.

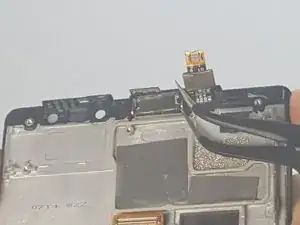

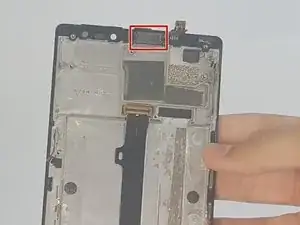

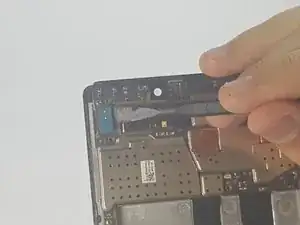

Gently lift the speaker out of its housing by inserting the tweezers under the speaker.
