Lenovo U31-70 Hard drive/SSD Replacement

Автор: fixer
  • Комментарии: 0
Lenovo U31-70 Hard drive/SSD Replacement

Сложность

Easy

Шаги

6

Необходимое время

8 минут

Введение

How to replace the Hard Drive or SSD. Same for Lenovo U41-70.

Инструменты

  1. XLYdI2IRiPqcuuLo
    XLYdI2IRiPqcuuLo
    DhNrvl1HKdRdgNRh

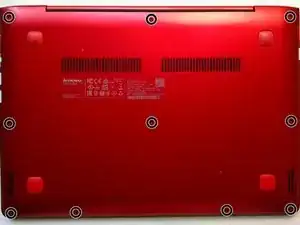

    • Phillips Screw Driver

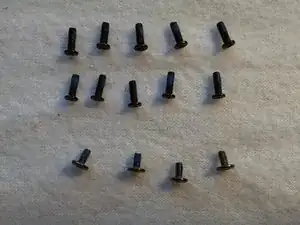

    • 10 Screws to hold Backplate

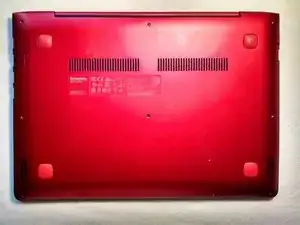

  2. EDtxVRYZdyQVVFTN
    EDtxVRYZdyQVVFTN
    IpQLh1Ckfn16Qxtw

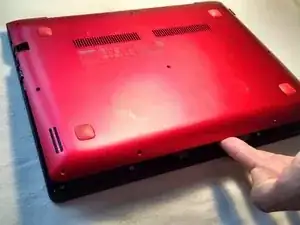

    • Lift up Backplate from side closest to you

  3. h2iCYPMO4iArfQcD
    h2iCYPMO4iArfQcD
    xuqMwfkKSoWKCqoA

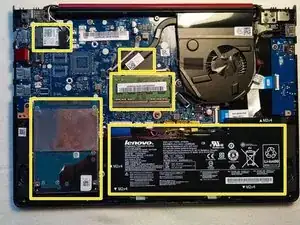

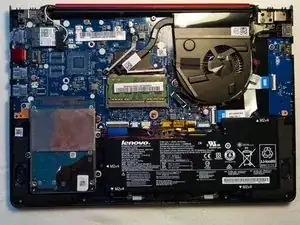

    • From top to bottom

    • Wifi Card

    • CPU

    • RAM

    • Hard Drive

    • Battery

  4. Psc225xCvyXgOIks
    Psc225xCvyXgOIks
    CbIS4hwa4STcGNHe

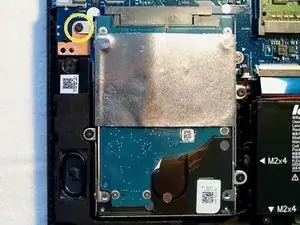

    • Remove 4 Hard Drive Screws

    • Top left Screw might have a Warranty-Seal

  5. q4JpFUDHOMFVe4Bm

    • Lift flap and pull down and up

  6. 2nlAXb5PmHIx2Aes
    2nlAXb5PmHIx2Aes
    vhKE2JDaZZsuH1AO

    • Remove Mounting Bracket from Hard Drive

Заключение

To reassemble your device, follow these instructions in reverse order.
