If your running out of RAM, or don't have enough storage, try upgrading your thinkpad.
Инструменты
Запчасти
-
-

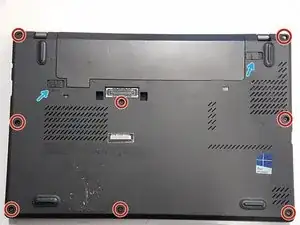

Unscrew the 8 screws holding the back panel in place.
-

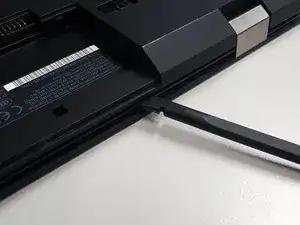

Use a plastic prying tool to release all the clips holding the panel in place.
-
-
-

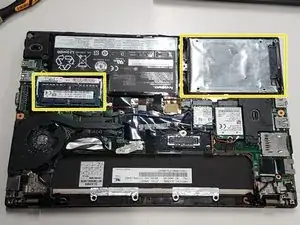

In the RAM slot, you will see 2 metal clips on either side. Pull on both and the ram will pop up.
-
Take out the stick of RAM.
-
Insert your new stick of RAM and push downwards.
-
-
-

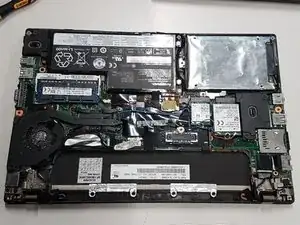

Unscrew the SSD/HDD placer
-
Then, remove and pull the SSD/HDD out.
-
Put in your new SSD.
-
Re-Plug the SATA Connector.
-
Заключение
To reassemble your device, follow these instructions in reverse order.
