Lenovo ThinkPad T440p Keyboard Replacement

Автор: Christian Abad
  • Комментарии: 2
Lenovo ThinkPad T440p Keyboard Replacement

Сложность

Moderate

Шаги

10

Необходимое время

6 минут

Введение

If keys are unresponsive or the whole keyboard is unresponsive you will most likely need to replace the keyboard for your Lenovo ThinkPad T440p. Replacing the keyboard can be quite tedious but will mainly consist of unscrewing screws and using your spudger to lift and remove cables. When removing the plastic cover, remove carefully.

  1. ksusH3IDUnrrJvCF

    • Flip the laptop so that the back is facing up.

  2. 1eRdgiumIRcw5Tsq
    1eRdgiumIRcw5Tsq
    dDnKAtcTColIODed

    • Slide the battery latches to the unlocked position.

  3. XZwXNgqoVPPbBGU4
    XZwXNgqoVPPbBGU4
    vyWtOfI6GgUUOFiH

    • Slide the battery pack out of the battery slot.

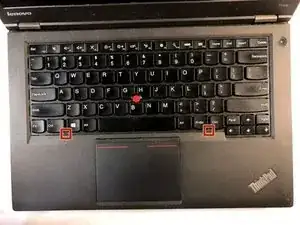

  4. MaKEMVfAx1UtiVxA
    MaKEMVfAx1UtiVxA
    nb2PWMebuAiDKVJr
    FIU5kVo5SnRLZWeW

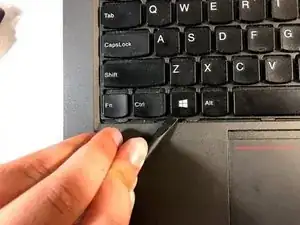

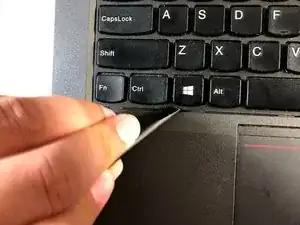

    • Using the spudger, move the plastic protector by pressing it down and forward in order to uncover the screws.

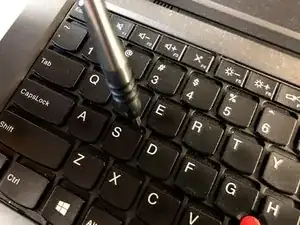

  5. nvW5sNTLnCdyx2H2
    nvW5sNTLnCdyx2H2
    CjW3AV4KD54efjSI

    • Don't remove the screws; just loosen them.

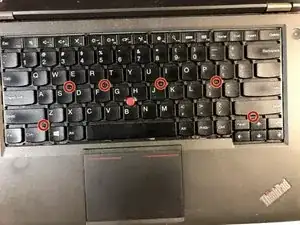

    • Unscrew the six screws that are attached to the keyboard by using a Phillips #00 screwdriver.

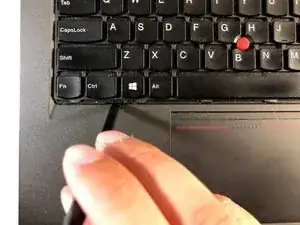

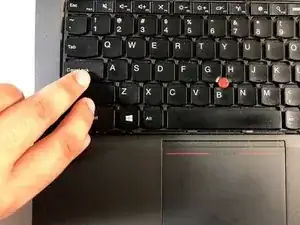

  6. 5j6iR1nYB2F2uEQi
    5j6iR1nYB2F2uEQi
    WdOkhjVb4L4pW3Pj
    wPSNfaujuVW1QBJU

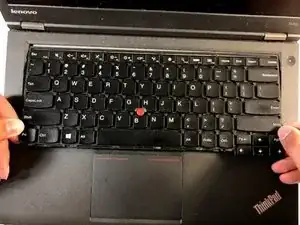

    • Use the spudger to lift the keyboard.

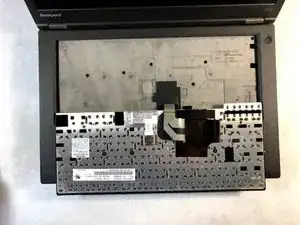

  7. J5QLvVbUAHSCcEcV
    J5QLvVbUAHSCcEcV
    gDv1QLOmTnKBQuEm

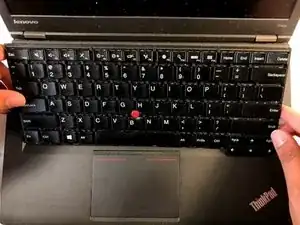

    • Turn the keyboard over.

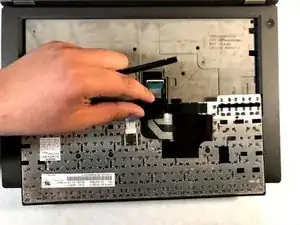

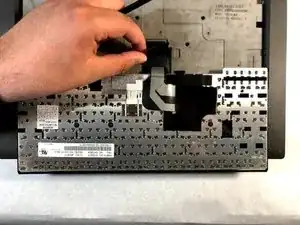

  8. pDDqkETl2kJMU1S1
    pDDqkETl2kJMU1S1
    RpRxEqMq1UjudaWF
    LiIkXi4jTehfaL6E

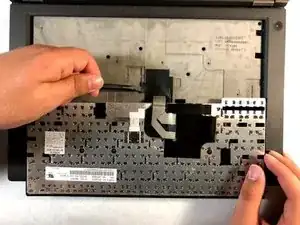

    • Use the spudger to detach the plastic protection.

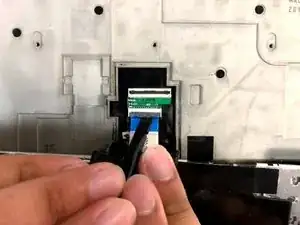

  9. QR5XaTMvDrXqjGBd
    QR5XaTMvDrXqjGBd
    KJYcP6ms4qMaBNHU
    62lnFHw1k5hsoKWM

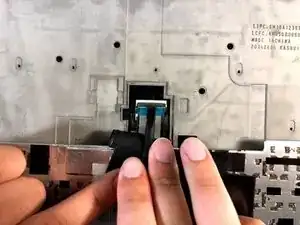

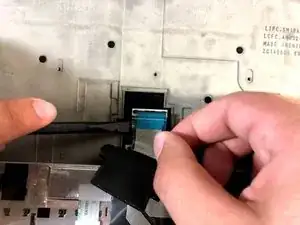

    • Use the spudger to disconnect the cables.

    CARE !!!

    My T440p type 20AW-S0Y40T does not have a detacheable plug/ socket and so the keyboard a “soldered on” device is

    NOT DETACHEABLE in this way 21/08/20

    Fritz -

  10. 3nHjgeNVucqJ5lAy

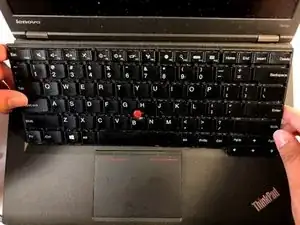

    • Remove the keyboard.

Заключение

To reassemble your device, follow these instructions in reverse order.
