Lenovo ThinkPad S431 Integrated Camera Replacement

Сложность

Moderate

Шаги

6

Необходимое время

10 - 20 минут

Введение

This guide will show you the steps to safely remove the damaged integrated camera from your laptop. The integrated camera is located above the screen of your laptop, which is usually used to take pictures, create videos, and chat with others.

  1. GWKUWtqOLU4rZQuI

    • Place an opening tool under the screen cover, and pop it off.

    • Using a metal object to open fragile parts of your laptop could cause damage! Instead use the opening tool listed in the tools section above.

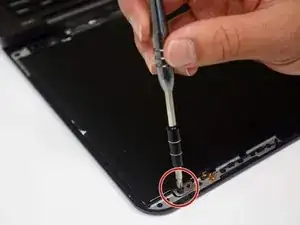

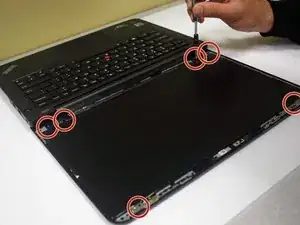

  2. DSkvOOqANDcLMOZF
    DSkvOOqANDcLMOZF
    Q4gSBbVm2ejS6Qaa

    • Take off the 6 screws using the Philips head #1.

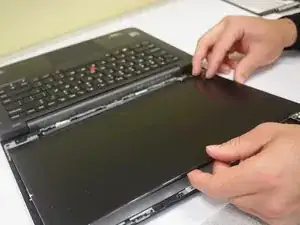

  3. Qp3SyXnjeEFXOTFG

    • Lift the screen out from the top.

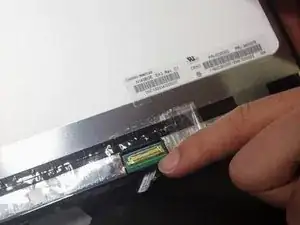

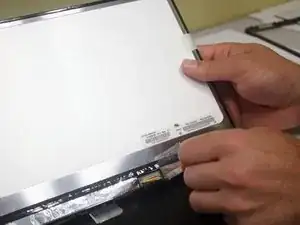

  4. d2i4GKZhW4TXjITp
    d2i4GKZhW4TXjITp
    DqOXK4LU6kOBDahm

    • Remove the connector located at the bottom of the back of the screen.

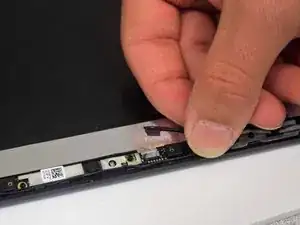

  5. JTTisIlanRseZZfu
    JTTisIlanRseZZfu
    rPZvJCrQJqIw4dxM

    • Unplug the connector. It is located on the top of the screen attached to the camera assembly.

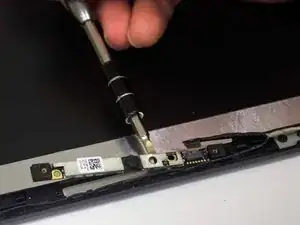

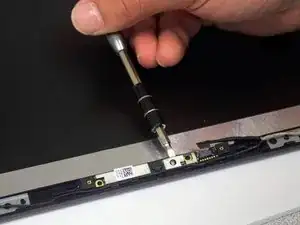

  6. rqZPyif6ijVCKWBh
    rqZPyif6ijVCKWBh
    PudmPjOCLLGbXSPw
    kTtXjxNcpWEUGscO
Заключение

To reassemble your device, follow these instructions in reverse order.
