Lenovo IdeaPad U430 Touch Memory Replacement

Автор: Patrick Ripkey
  • Комментарии: 1
Lenovo IdeaPad U430 Touch Memory Replacement

Сложность

Easy

Шаги

5

Необходимое время

10 - 15 минут

Введение

For this guide, we will be replacing the RAM on a Lenovo IdeaPad U430 Touch. Once the back of the computer case is off, no tools are necessary for replacement.

  1. XY6SciObRxlKCWdi

    • Power off your computer before you begin.

    • Find and remove the 10 Phillips style body screws on the bottom of the laptop case.

    • Remove 2 screws, 1 located on the left hinge cover and one located on the right hinge cover.

  3. XHupn6TJa2lENlyL
    XHupn6TJa2lENlyL
    2QnQk5eCYnwZCtN4

    • Starting from the front, use a plastic opening tool to separate the bottom of the case from the body of the laptop.

  4. A6BngU1InDVyC6OI
    A6BngU1InDVyC6OI
    OSmKUODkCoTMuytq

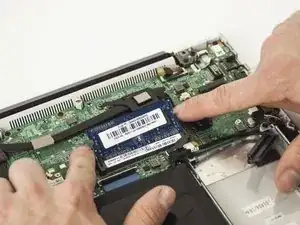

    • Press down and out on the topside of the clips holding the memory in place.

  5. OWGBtDhwEICRrLCU

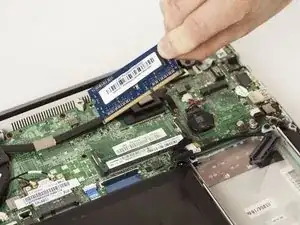

    • Once the clips are free, pull the topside of the memory up, and then remove it from the slot.

Заключение

To reassemble your device, follow these instructions in reverse order.

Автор

Patrick Ripkey

Участник c: 28/02/17

627 Репутация

Один комментарий

What is the maximum RAM this machine will support?
